0878333021
Molex
Molex

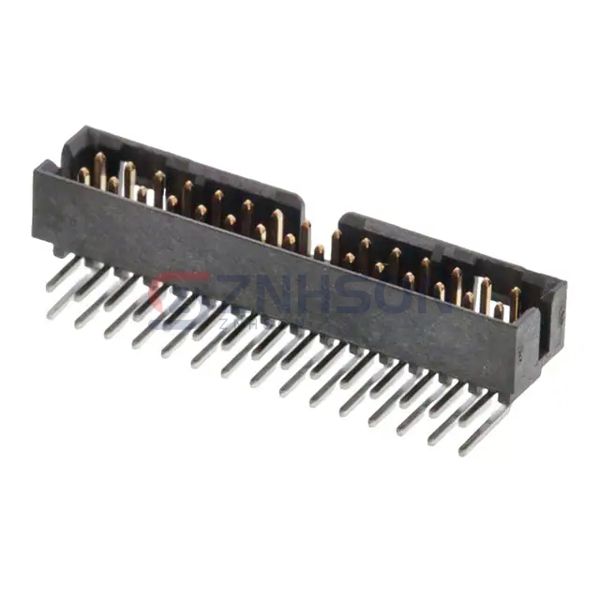

CONN HEADER R/A 30POS 2MM
$5.73
Available to order
Reference Price (USD)
1+
$4.17000
10+
$4.00400
100+
$3.33700
500+
$2.83646
1,600+
$2.33590
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 0878333021 by Molex is a versatile rectangular connector header designed for male pin connections. With a focus on quality and precision, these headers support various PCB layouts and configurations. Ideal for applications in robotics, power supplies, and audio equipment. Molex delivers connectors that meet the needs of modern electronics with unmatched reliability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.079" (2.00mm)
- Number of Positions: 30
- Number of Rows: 2
- Row Spacing - Mating: 0.079" (2.00mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Latch Holder
- Contact Length - Mating: 0.141" (3.60mm)
- Contact Length - Post: 0.085" (2.16mm)
- Overall Contact Length: -
- Insulation Height: 0.248" (6.30mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 30.0µin (0.76µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polyamide (PA), Nylon, Glass Filled
- Features: Keying Slot
- Operating Temperature: -
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: -
