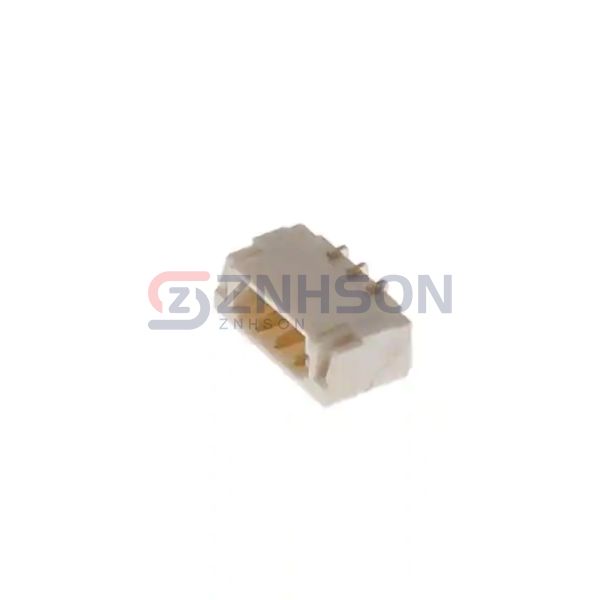

08SH-A-03-GS-SMT-PP-T/R
Adam Tech
Adam Tech
CONN HEADER SMD 3POS 0.8MM
$0.60
Available to order
Reference Price (USD)
1+
$0.60000
500+
$0.594
1000+
$0.588
1500+
$0.582
2000+
$0.576
2500+
$0.57
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 08SH-A-03-GS-SMT-PP-T/R by Adam Tech is a premium rectangular connector header designed for male pin connections. Engineered for precision, these headers offer low insertion loss and high mating cycles. Perfect for high-density PCB applications, the 08SH-A-03-GS-SMT-PP-T/R supports various configurations to meet diverse needs. Its applications span across data communication, military equipment, and renewable energy systems. Adam Tech ensures each connector meets rigorous quality standards for global compliance.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.031" (0.80mm)
- Number of Positions: 3
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Surface Mount
- Termination: Solder
- Fastening Type: Friction Lock
- Contact Length - Mating: -
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.110" (2.79mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: Flash
- Contact Finish - Post: Gold
- Contact Material: Phosphor Bronze
- Insulation Material: Thermoplastic
- Features: Pick and Place, Solder Retention
- Operating Temperature: -25°C ~ 85°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Natural
- Current Rating (Amps): Varies by Wire Gauge
- Voltage Rating: 30VAC/DC
Related Products
Samtec Inc.
TMM-127-01-G-S-RA
TE Connectivity AMP Connectors
1-86479-8
TE Connectivity AMP Connectors
499206-8
Preci-Dip
800-10-028-65-001101
Samtec Inc.
TSW-110-08-G-D
Adam Tech
25SH-B-06-TS
Preci-Dip
351-10-145-00-004101

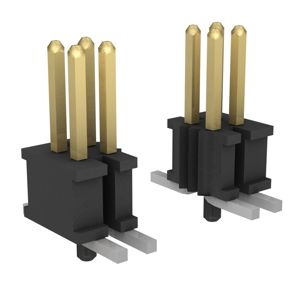

Samtec Inc.
