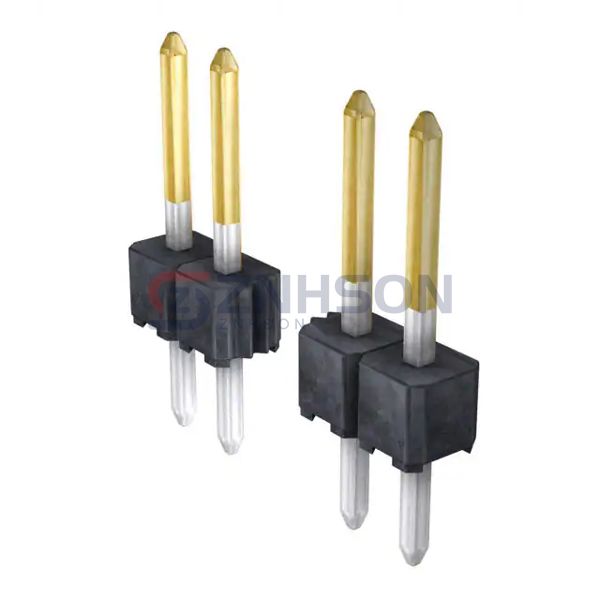

0901201086
Molex
Molex
CONN HEADER VERT 6POS 2.54MM
$1.44
Available to order
Reference Price (USD)
1+
$1.22000
10+
$1.07200
100+
$0.92440
500+
$0.75636
2,400+
$0.60929
7,200+
$0.58828
12,000+
$0.54626
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 0901201086 by Molex is a versatile rectangular connector header designed for male pin connections. With a focus on quality and precision, these headers support various PCB layouts and configurations. Ideal for applications in robotics, power supplies, and audio equipment. Molex delivers connectors that meet the needs of modern electronics with unmatched reliability.
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 6
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.266" (6.75mm)
- Contact Length - Post: 0.114" (2.90mm)
- Overall Contact Length: 0.478" (12.15mm)
- Insulation Height: 0.098" (2.50mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 2.00µin (0.051µm)
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polyester, Glass Filled
- Features: -
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: -
