0901310157
Molex
Molex

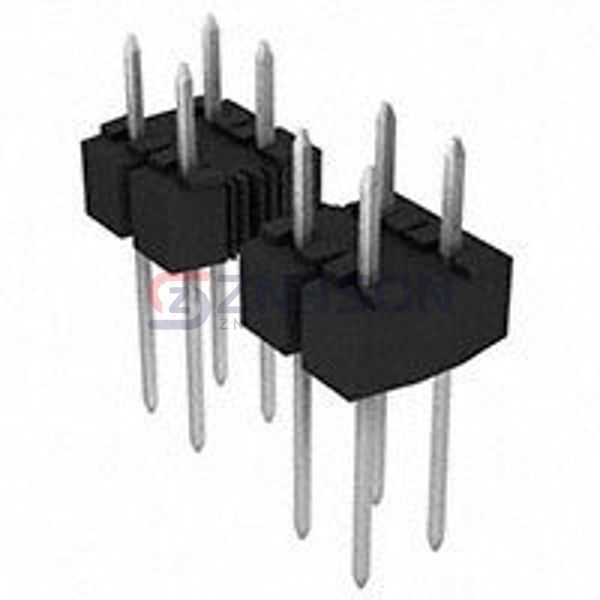

CONN HEADER VERT 74POS 2.54MM
$6.61
Available to order
Reference Price (USD)
1+
$6.30000
10+
$6.03500
25+
$5.51000
50+
$5.24760
100+
$4.98530
250+
$4.46048
500+
$4.19812
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 0901310157 by Molex is a versatile rectangular connector header designed for male pin connections. With a focus on quality and precision, these headers support various PCB layouts and configurations. Ideal for applications in robotics, power supplies, and audio equipment. Molex delivers connectors that meet the needs of modern electronics with unmatched reliability.
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 74
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.266" (6.75mm)
- Contact Length - Post: 0.114" (2.90mm)
- Overall Contact Length: 0.478" (12.15mm)
- Insulation Height: 0.098" (2.50mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 118.1µin (3.00µm)
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polyester, Glass Filled
- Features: -
- Operating Temperature: -
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: -
