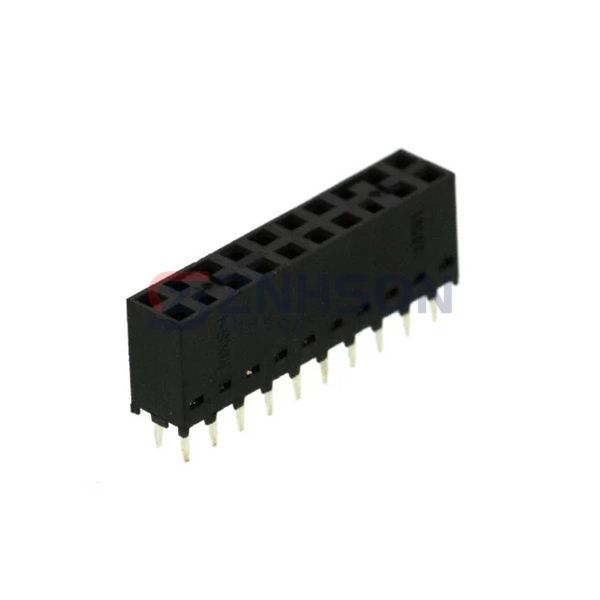

0901512120
Molex
Molex
CONN RCPT 20POS 0.1 TIN PCB
$6.12
Available to order
Reference Price (USD)
1+
$3.55000
10+
$3.40400
100+
$2.83650
880+
$2.19827
1,760+
$1.98553
5,280+
$1.84371
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your electronic assemblies with 0901512120 Molex Rectangular Connectors - Headers, Receptacles, and Female Sockets. These connectors provide secure, high-density connections for compact devices and complex systems. With options for surface mount, through-hole, and press-fit terminations, they cater to diverse design requirements. Ideal for wearable technology, test & measurement instruments, and LED lighting, Molex connectors deliver consistent quality. Applications include fitness trackers, oscilloscopes, and architectural lighting systems.
Specifications
- Product Status: Active
- Connector Type: Receptacle
- Contact Type: Female Socket
- Style: Board to Board
- Number of Positions: 20
- Number of Positions Loaded: All
- Pitch - Mating: 0.100" (2.54mm)
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 40.0µin (1.02µm)
- Insulation Color: Black
- Insulation Height: 0.335" (8.51mm)
- Contact Length - Post: 0.114" (2.90mm)
- Operating Temperature: -55°C ~ 105°C
- Material Flammability Rating: -
- Contact Finish - Post: Tin
- Mated Stacking Heights: -
- Ingress Protection: -
- Features: -
- Current Rating (Amps): 3A
- Voltage Rating: 350V
