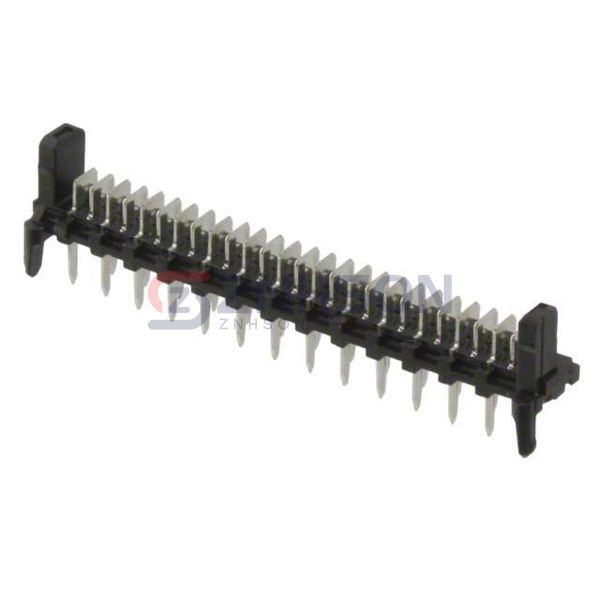

0903259026
Molex
Molex
CONN HEADER VERT 26POS 1.27MM
$1.50
Available to order
Reference Price (USD)
1+
$1.50000
500+
$1.485
1000+
$1.47
1500+
$1.455
2000+
$1.44
2500+
$1.425
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 0903259026 by Molex is a premium rectangular connector header designed for male pin connections. Engineered for precision, these headers offer low insertion loss and high mating cycles. Perfect for high-density PCB applications, the 0903259026 supports various configurations to meet diverse needs. Its applications span across data communication, military equipment, and renewable energy systems. Molex ensures each connector meets rigorous quality standards for global compliance.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Blade
- Pitch - Mating: 0.050" (1.27mm)
- Number of Positions: 26
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 2 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: -
- Contact Length - Post: 0.130" (3.30mm)
- Overall Contact Length: -
- Insulation Height: 0.252" (6.40mm)
- Contact Shape: Rectangular
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 118.1µin (3.00µm)
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polybutylene Terephthalate (PBT), Glass Filled
- Features: Board Lock
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 1.2A
- Voltage Rating: 250V
Related Products
Samtec Inc.
TSW-109-06-T-S
TE Connectivity AMP Connectors
5-146252-7
Samtec Inc.
TSM-121-02-L-DH-A
Samtec Inc.
FTSH-145-01-F-DH-A
Hirose Electric Co Ltd
GT8E-3P-DS(55)
Sullins Connector Solutions
SBH21-NBPN-D05-SM-BK
Amphenol ICC (FCI)
67996-164HLF

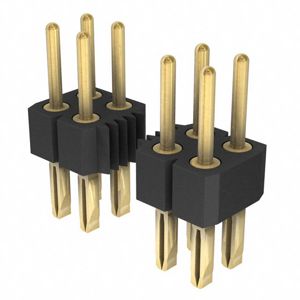

Preci-Dip
