0908143812
Molex
Molex

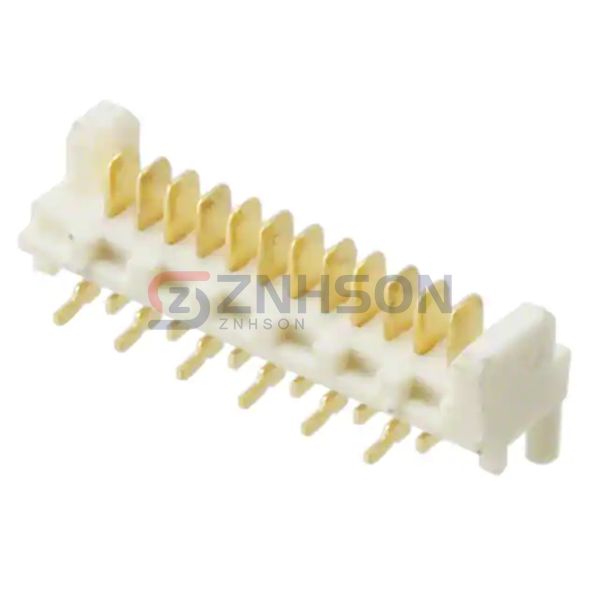

CONN HEADER SMD 12POS 1.27MM
$0.84
Available to order
Reference Price (USD)
1+
$0.83790
500+
$0.829521
1000+
$0.821142
1500+
$0.812763
2000+
$0.804384
2500+
$0.796005
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 0908143812 male pin header by Molex offers a dependable solution for rectangular connectors. Designed for easy integration, these headers ensure consistent connectivity in demanding environments. Features include high-temperature resistance and superior contact stability. Applications range from industrial machinery to smart home systems. Choose Molex for connectors that combine innovation with durability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Blade
- Pitch - Mating: 0.050" (1.27mm)
- Number of Positions: 12
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 2 Wall
- Mounting Type: Surface Mount
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.085" (2.15mm)
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.161" (4.10mm)
- Contact Shape: Rectangular
- Contact Finish - Mating: Palladium-Nickel
- Contact Finish Thickness - Mating: 24.0µin (0.61µm)
- Contact Finish - Post: Tin
- Contact Material: Cartridge Brass
- Insulation Material: Polyamide (PA), Nylon, Glass Filled
- Features: Board Guide
- Operating Temperature: -
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Natural
- Current Rating (Amps): -
- Voltage Rating: -
