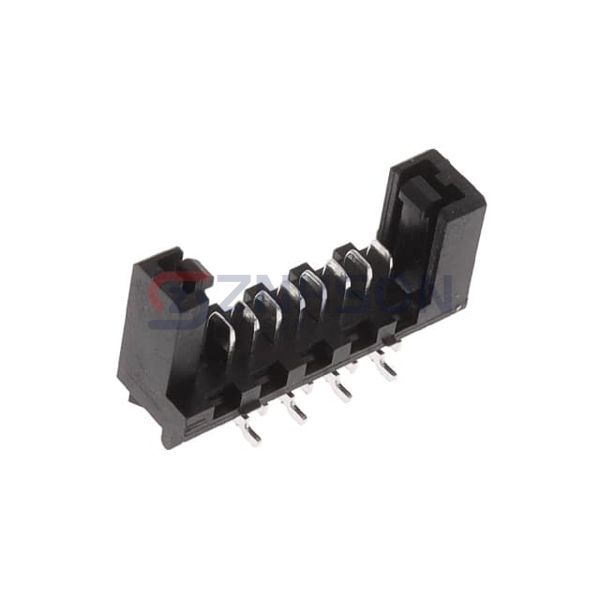

0908160008
Molex
Molex
CONN HEADER SMD 8POS 1.27MM
$1.42
Available to order
Reference Price (USD)
1+
$1.11000
10+
$0.98000
25+
$0.92200
50+
$0.88360
100+
$0.84520
250+
$0.76840
500+
$0.69156
1,000+
$0.61472
2,500+
$0.55709
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 0908160008 male pin header by Molex provides a reliable solution for rectangular connectors. Designed for ease of use and high performance, these headers are suitable for a wide range of applications, including LED lighting, HVAC systems, and portable devices. Molex guarantees connectors that enhance your product's functionality and lifespan.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Blade
- Pitch - Mating: 0.050" (1.27mm)
- Number of Positions: 8
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 2 Wall
- Mounting Type: Surface Mount
- Termination: Solder
- Fastening Type: Latch Lock
- Contact Length - Mating: 0.083" (2.10mm)
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.333" (8.45mm)
- Contact Shape: Rectangular
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 118.1µin (3.00µm)
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polyphthalamide (PPA), Glass Filled
- Features: Board Guide
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 HB
- Insulation Color: Black
- Current Rating (Amps): 1.2A
- Voltage Rating: 250V
