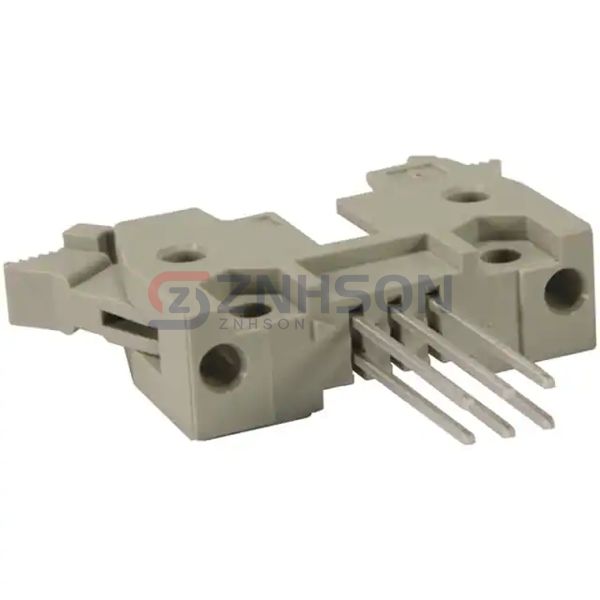

09185066927
HARTING
HARTING
CONN HEADER VERT 6POS 2.54MM
$4.81
Available to order
Reference Price (USD)
50+
$3.88500
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Choose the 09185066927 rectangular connector header from HARTING for superior male pin interconnections. These headers are engineered for high-density applications, offering excellent conductivity and mechanical stability. Common uses include server racks, test equipment, and marine electronics. HARTING is committed to providing connectors that exceed industry expectations.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 6
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Wire Wrap
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.228" (5.80mm)
- Contact Length - Post: 0.591" (15.00mm)
- Overall Contact Length: 1.126" (28.60mm)
- Insulation Height: 0.681" (17.30mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Polybutylene Terephthalate (PBT), Glass Filled
- Features: Keying Slot, Mounting Flange
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Gray
- Current Rating (Amps): -
- Voltage Rating: -
