09185505902
HARTING
HARTING

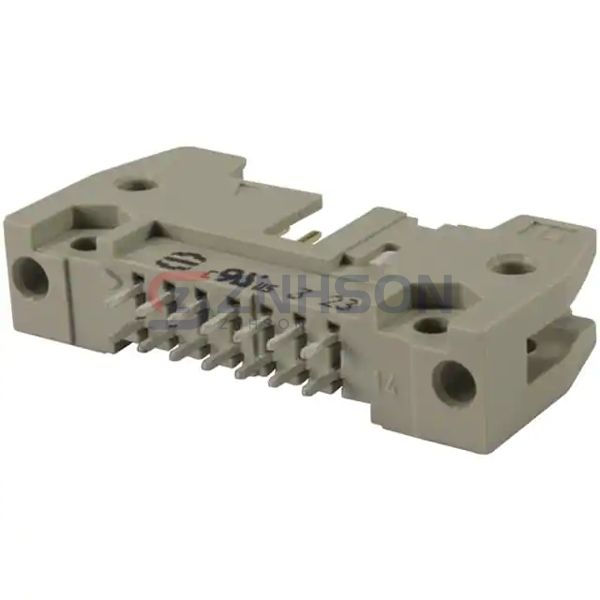

CONN HEADER VERT 50POS 2.54MM
$8.57
Available to order
Reference Price (USD)
1+
$7.08000
10+
$6.78500
25+
$6.19520
50+
$5.90000
100+
$5.60500
250+
$5.01500
500+
$4.72000
1,000+
$4.13000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 09185505902 by HARTING is a premium rectangular connector header designed for male pin connections. Engineered for precision, these headers offer low insertion loss and high mating cycles. Perfect for high-density PCB applications, the 09185505902 supports various configurations to meet diverse needs. Its applications span across data communication, military equipment, and renewable energy systems. HARTING ensures each connector meets rigorous quality standards for global compliance.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 50
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Latch Lock/Eject Hooks, Long
- Contact Length - Mating: 0.240" (6.10mm)
- Contact Length - Post: 0.177" (4.50mm)
- Overall Contact Length: 0.713" (18.10mm)
- Insulation Height: 0.681" (17.30mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 30.0µin (0.76µm)
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Polybutylene Terephthalate (PBT), Glass Filled
- Features: Keying Slot, Mounting Flange
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Gray
- Current Rating (Amps): -
- Voltage Rating: -
