09185645904
HARTING
HARTING
CONN HEADER VERT 64POS 2.54MM
$8.77
Available to order
Reference Price (USD)
1+
$7.10000
10+
$6.80800
25+
$6.21600
50+
$5.92000
100+
$5.62400
250+
$5.03200
500+
$4.73600
1,000+
$4.14400
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram

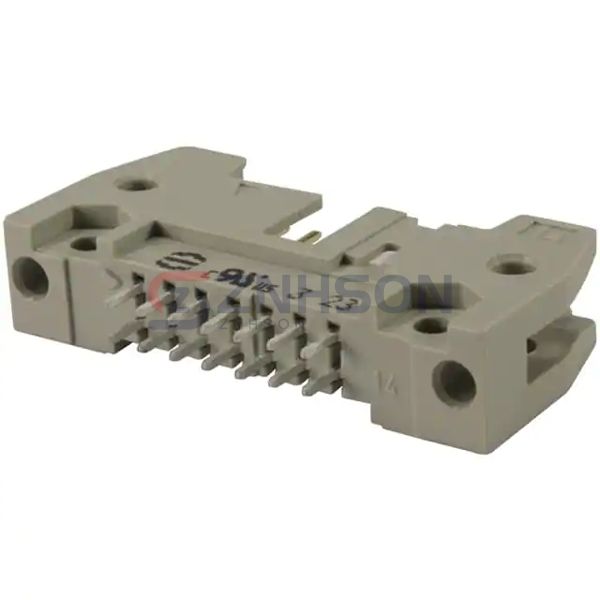

Discover the 09185645904 rectangular connector header from HARTING, a top choice for male pin interconnections. These headers provide exceptional mechanical strength and electrical performance. With options for through-hole or surface mount, the 09185645904 adapts to different assembly processes. Ideal for use in automotive electronics, consumer gadgets, and IoT devices. HARTING guarantees connectors that enhance your product's reliability and efficiency.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 64
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Latch Lock/Eject Hooks, Long
- Contact Length - Mating: 0.228" (5.80mm)
- Contact Length - Post: 0.114" (2.90mm)
- Overall Contact Length: 0.650" (16.51mm)
- Insulation Height: 0.681" (17.30mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 30.0µin (0.76µm)
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Polybutylene Terephthalate (PBT), Glass Filled
- Features: Keying Slot, Mounting Flange
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Gray
- Current Rating (Amps): -
- Voltage Rating: -
