0VPX.336DMA
W-IE-NE-R Power Electronics
W-IE-NE-R Power Electronics
DCDC CNVRT 12V 3.3V 5V -12V 360W
$4,766.00
Available to order
Reference Price (USD)
1+
$4766.00000
500+
$4718.34
1000+
$4670.68
1500+
$4623.02
2000+
$4575.36
2500+
$4527.7
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram

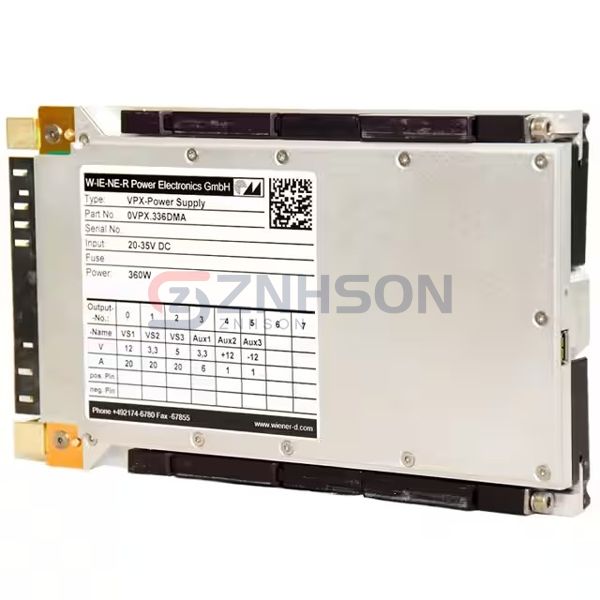

Upgrade your power supply system with the 0VPX.336DMA Off-Board DC DC Converter from W-IE-NE-R Power Electronics. This converter is built to provide high-efficiency power conversion with minimal heat generation. Featuring a wide input range and isolated output, it ensures safety and performance in diverse settings. The 0VPX.336DMA is ideal for use in harsh environments, thanks to its rugged enclosure and protective coatings. Common uses include railway signaling, oil & gas instrumentation, and outdoor LED displays. For example, it powers traffic control systems, pipeline monitors, and large-scale advertising boards. W-IE-NE-R Power Electronics delivers reliability you can count on.
Specifications
- Product Status: Active
- Type: Enclosed, Conformal Coated
- Voltage - Input (Min): 14V
- Voltage - Input (Max): 40V
- Number of Outputs: 6
- Voltage - Output 1: 12V
- Voltage - Output 2: 3.3V
- Voltage - Output 3: 5V
- Voltage - Output 4: -12V
- Current - Output (Max): 15A, 20A, 30A, 1A, 1A, 6A
- Power (Watts): 360W
- Voltage - Isolation: 500 V
- Applications: ITE (Commercial)
- Efficiency: 90%
- Operating Temperature: -40°C ~ 85°C
- Mounting Type: Chassis Mount
- Size / Dimension: 6.69" L x 3.94" W x 0.8" H (170.0mm x 100.0mm x 20.0mm)
- Approval Agency: -
- Standard Number: -
