1-102156-2
TE Connectivity AMP Connectors
TE Connectivity AMP Connectors

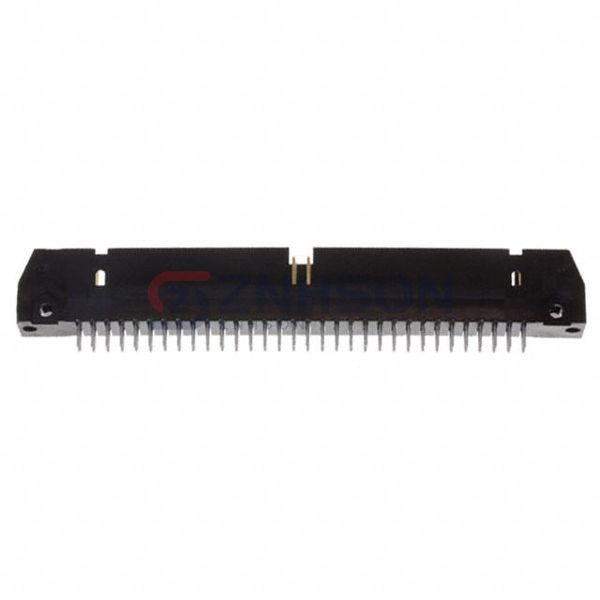

CONN HEADER VERT 64POS 2.54MM
$6.47
Available to order
Reference Price (USD)
390+
$5.07556
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 1-102156-2 male pin header by TE Connectivity AMP Connectors provides a reliable solution for rectangular connectors. Designed for ease of use and high performance, these headers are suitable for a wide range of applications, including LED lighting, HVAC systems, and portable devices. TE Connectivity AMP Connectors guarantees connectors that enhance your product's functionality and lifespan.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 64
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.240" (6.10mm)
- Contact Length - Post: 0.155" (3.94mm)
- Overall Contact Length: 0.684" (17.37mm)
- Insulation Height: 0.549" (13.94mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold or Gold-Palladium
- Contact Finish Thickness - Mating: 30.0µin (0.76µm)
- Contact Finish - Post: Tin-Lead
- Contact Material: -
- Insulation Material: -
- Features: Keying Slot, Mounting Flange
- Operating Temperature: -65°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 1A per Contact
- Voltage Rating: 250VAC
