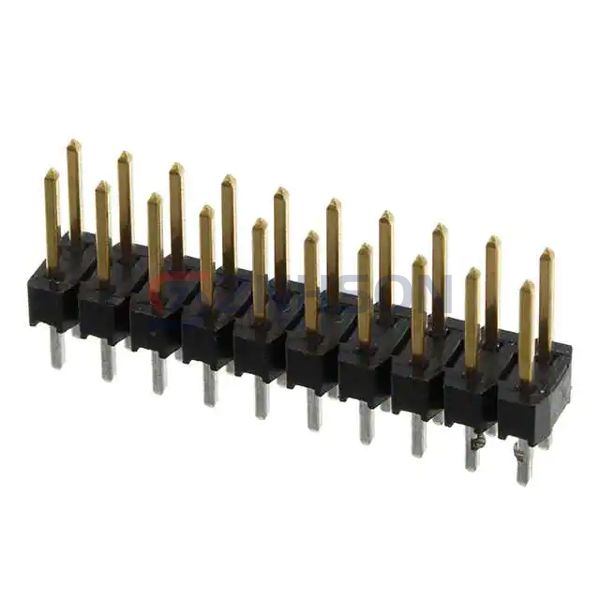

1-104350-0
TE Connectivity AMP Connectors
TE Connectivity AMP Connectors
CONN HEADER VERT 20POS 2.54MM
$4.15
Available to order
Reference Price (USD)
1+
$3.13000
10+
$3.00200
100+
$2.50160
500+
$2.12634
1,000+
$1.81365
5,000+
$1.62603
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 1-104350-0 by TE Connectivity AMP Connectors is a premium rectangular connector header designed for male pin connections. Engineered for precision, these headers offer low insertion loss and high mating cycles. Perfect for high-density PCB applications, the 1-104350-0 supports various configurations to meet diverse needs. Its applications span across data communication, military equipment, and renewable energy systems. TE Connectivity AMP Connectors ensures each connector meets rigorous quality standards for global compliance.
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 20
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Press-Fit, Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.230" (5.84mm)
- Contact Length - Post: 0.120" (3.05mm)
- Overall Contact Length: 0.440" (11.18mm)
- Insulation Height: 0.090" (2.29mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 30.0µin (0.76µm)
- Contact Finish - Post: Tin-Lead
- Contact Material: Copper Alloy
- Insulation Material: Thermoplastic
- Features: -
- Operating Temperature: -65°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: 30VAC
Related Products
Sullins Connector Solutions
PBC16SBBN
Molex
22-03-1041
TE Connectivity AMP Connectors
5-146135-4
Samtec Inc.
HTSW-112-08-L-S-RA
Hirose Electric Co Ltd
DF3E-2P-2H(21)
Samtec Inc.
MTLW-110-07-G-D-170
Samtec Inc.
TSM-130-01-T-SH-029-P
TE Connectivity AMP Connectors
9-146261-0-35
Samtec Inc.

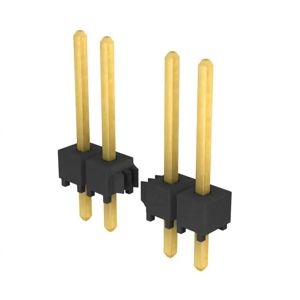

TSW-142-14-G-S
