1-104433-3
TE Connectivity AMP Connectors
TE Connectivity AMP Connectors
CONN HEADER VERT 26POS 2.54MM
$5.20
Available to order
Reference Price (USD)
1+
$4.07000
10+
$3.90900
100+
$3.25760
500+
$2.76892
1,000+
$2.36173
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 1-104433-3 by TE Connectivity AMP Connectors is a versatile rectangular connector header designed for male pin connections. With a focus on quality and precision, these headers support various PCB layouts and configurations. Ideal for applications in robotics, power supplies, and audio equipment. TE Connectivity AMP Connectors delivers connectors that meet the needs of modern electronics with unmatched reliability.
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 26
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Press-Fit, Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.318" (8.08mm)
- Contact Length - Post: 0.125" (3.18mm)
- Overall Contact Length: 0.533" (13.55mm)
- Insulation Height: 0.090" (2.29mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 15.0µin (0.38µm)
- Contact Finish - Post: Tin-Lead
- Contact Material: Copper Alloy
- Insulation Material: Thermoplastic
- Features: -
- Operating Temperature: -65°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: 30VAC
Related Products
Samtec Inc.
HTSW-103-08-SM-S-RA
Harwin Inc.
M22-2020805
Samtec Inc.
BBS-113-G-A
TE Connectivity AMP Connectors
4-103240-0-11
Mill-Max Manufacturing Corp.
350-10-141-00-001000
Samtec Inc.
TSM-136-03-S-DH-A
CWB Electronics Inc.
VH-8AW-X UL (WT)
Samtec Inc.

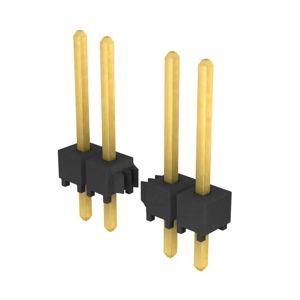

TSW-116-14-G-S
Samtec Inc.

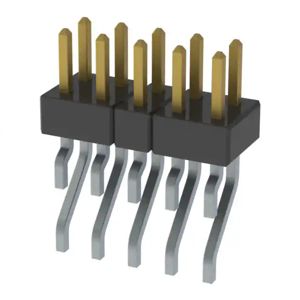

MMT-105-01-S-DH-TR
