1-104652-0
TE Connectivity AMP Connectors
TE Connectivity AMP Connectors

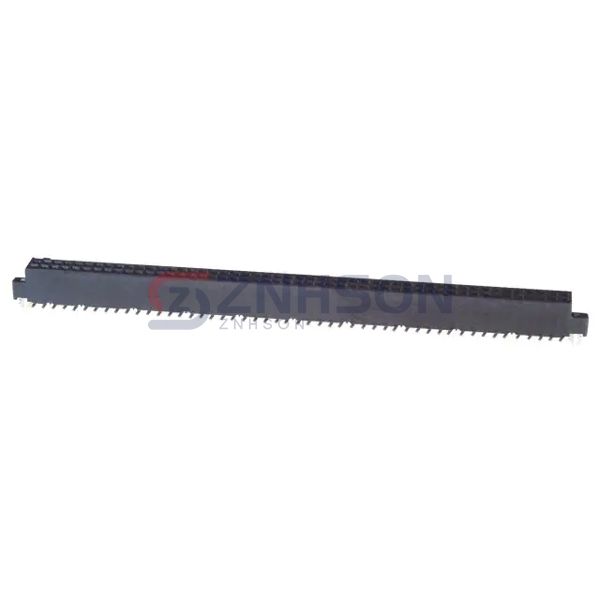

CONN RCPT 100POS 0.05 GOLD SMD
$19.12
Available to order
Reference Price (USD)
1+
$12.03000
16+
$10.94000
104+
$9.29904
504+
$7.93151
1,000+
$7.27510
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 1-104652-0 TE Connectivity AMP Connectors Rectangular Connectors - Headers, Receptacles, and Female Sockets offer superior connectivity solutions for modern electronics. Designed with versatility in mind, these connectors support high-speed data transfer and power delivery. Their compact design and rugged build make them suitable for aerospace, military, and IoT applications. Whether you need board-to-board, cable-to-board, or wire-to-wire connections, TE Connectivity AMP Connectors provides reliable options. Examples include avionics systems, defense equipment, and smart home devices.
Specifications
- Product Status: Active
- Connector Type: Receptacle
- Contact Type: Female Socket
- Style: Board to Board or Cable
- Number of Positions: 100
- Number of Positions Loaded: All
- Pitch - Mating: 0.050" (1.27mm)
- Number of Rows: 2
- Row Spacing - Mating: 0.050" (1.27mm)
- Mounting Type: Surface Mount
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 30.0µin (0.76µm)
- Insulation Color: Black
- Insulation Height: 0.187" (4.75mm)
- Contact Length - Post: -
- Operating Temperature: -65°C ~ 105°C
- Material Flammability Rating: -
- Contact Finish - Post: Tin-Lead
- Mated Stacking Heights: 6.35mm, 8.13mm, 9.91mm
- Ingress Protection: -
- Features: Board Lock
- Current Rating (Amps): -
- Voltage Rating: -
