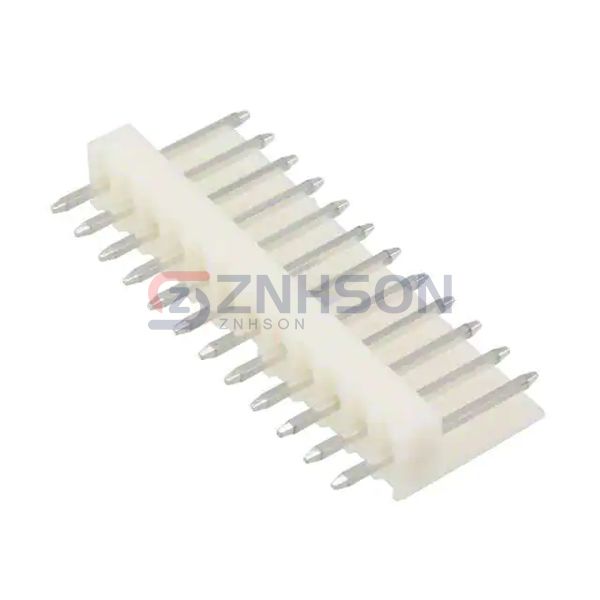

1-171825-2
TE Connectivity AMP Connectors
TE Connectivity AMP Connectors
CONN HEADER VERT 12POS 2.5MM
$1.81
Available to order
Reference Price (USD)
1+
$1.51000
10+
$1.33700
100+
$1.16750
500+
$0.97294
1,000+
$0.87564
5,000+
$0.77835
10,000+
$0.74430
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the 1-171825-2 rectangular connector header from TE Connectivity AMP Connectors, a top choice for male pin interconnections. These headers provide exceptional mechanical strength and electrical performance. With options for through-hole or surface mount, the 1-171825-2 adapts to different assembly processes. Ideal for use in automotive electronics, consumer gadgets, and IoT devices. TE Connectivity AMP Connectors guarantees connectors that enhance your product's reliability and efficiency.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.098" (2.50mm)
- Number of Positions: 12
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 1 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Latch Holder
- Contact Length - Mating: 0.295" (7.49mm)
- Contact Length - Post: 0.142" (3.60mm)
- Overall Contact Length: 0.551" (14.00mm)
- Insulation Height: 0.409" (10.40mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 31.5µin (0.80µm)
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polyamide (PA66), Nylon 6/6
- Features: -
- Operating Temperature: -
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Natural
- Current Rating (Amps): 2A
- Voltage Rating: 250VAC, 350VDC
