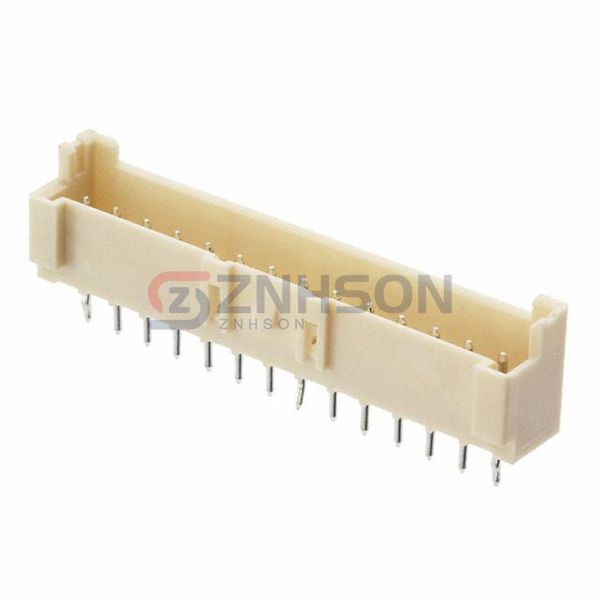

1-1744439-4

Specifications

• Product Status: Active
• Connector Type: Header
• Contact Type: Male Pin
• Pitch - Mating: 0.098" (2.50mm)
• Number of Positions: 14
• Number of Rows: 1
• Row Spacing - Mating: -
• Number of Positions Loaded: All
• Style: Board to Cable/Wire
• Shrouding: Shrouded - 4 Wall
• Mounting Type: Through Hole
• Termination: Kinked Pin, Solder
• Fastening Type: Friction Lock
• Contact Length - Mating: -
• Contact Length - Post: 0.134" (3.40mm)
• Overall Contact Length: -
• Insulation Height: 0.346" (8.80mm)
• Contact Shape: Circular
• Contact Finish - Mating: Tin
• Contact Finish Thickness - Mating: 80.0µin (2.03µm)
• Contact Finish - Post: Tin
• Contact Material: Copper Alloy
• Insulation Material: Polyamide (PA), Nylon
• Features: Glow Wire Compliant
• Operating Temperature: -55°C ~ 105°C
• Ingress Protection: -
• Material Flammability Rating: UL94 V-0
• Insulation Color: Natural
• Current Rating (Amps): 4.2A
• Voltage Rating: 250VAC
