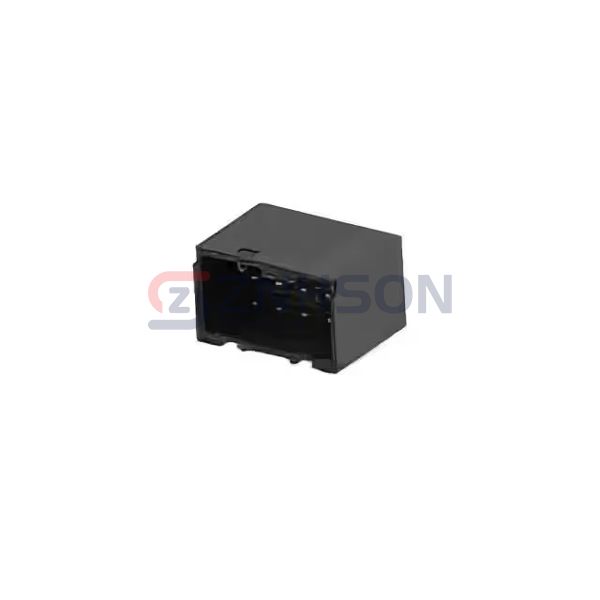

1-1871935-4
TE Connectivity AMP Connectors
TE Connectivity AMP Connectors
CONN HEADER R/A 8POS 3.5MM
$2.84
Available to order
Reference Price (USD)
1+
$2.99000
23+
$2.88217
46+
$2.66043
69+
$2.54957
115+
$2.43878
253+
$2.16158
506+
$2.10615
1,012+
$1.82902
2,507+
$1.71817
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 1-1871935-4 male pin header by TE Connectivity AMP Connectors offers a dependable solution for rectangular connectors. Designed for easy integration, these headers ensure consistent connectivity in demanding environments. Features include high-temperature resistance and superior contact stability. Applications range from industrial machinery to smart home systems. Choose TE Connectivity AMP Connectors for connectors that combine innovation with durability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Tab
- Pitch - Mating: 0.138" (3.50mm)
- Number of Positions: 8
- Number of Rows: 2
- Row Spacing - Mating: 0.130" (3.30mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Detent Lock
- Contact Length - Mating: -
- Contact Length - Post: 0.118" (3.00mm)
- Overall Contact Length: -
- Insulation Height: 0.465" (11.80mm)
- Contact Shape: Rectangular
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 12.0µin (0.30µm)
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Thermoplastic, Polyester, Glass Filled
- Features: Board Lock
- Operating Temperature: -30°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 4A
- Voltage Rating: 150V
