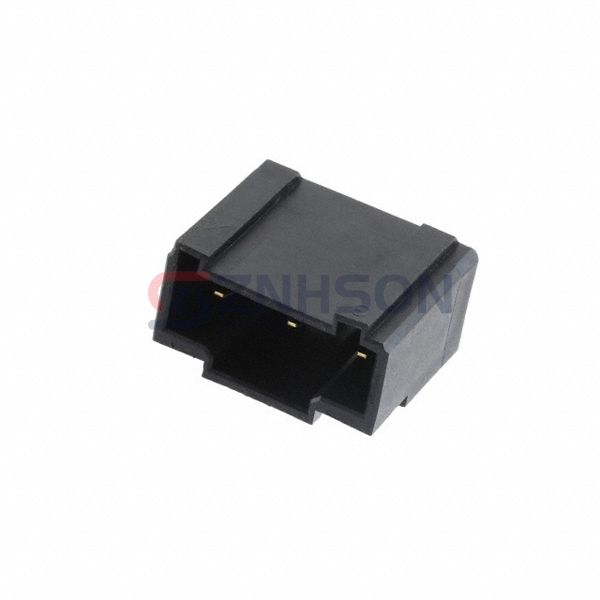

1-2013519-3
TE Connectivity AMP Connectors
TE Connectivity AMP Connectors
CONN HEADER R/A 3POS 7.5MM
$1.51
Available to order
Reference Price (USD)
1+
$2.04000
20+
$1.86150
40+
$1.75600
60+
$1.68567
100+
$1.61550
260+
$1.47496
500+
$1.36962
1,000+
$1.19401
2,500+
$1.12378
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your electronic assemblies with the 1-2013519-3 rectangular connector header from TE Connectivity AMP Connectors. These male pin connectors are built for high-performance applications, offering excellent signal integrity and durability. Suitable for use in automotive, medical, and telecommunications industries, the 1-2013519-3 meets the highest industry standards. TE Connectivity AMP Connectors provides connectors that ensure long-term reliability and performance.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Tab
- Pitch - Mating: 0.295" (7.50mm)
- Number of Positions: 3
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Detent Lock
- Contact Length - Mating: -
- Contact Length - Post: 0.150" (3.81mm)
- Overall Contact Length: -
- Insulation Height: 0.512" (13.00mm)
- Contact Shape: Rectangular
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 15.0µin (0.38µm)
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Thermoplastic, Polyester, Glass Filled
- Features: Board Lock
- Operating Temperature: -30°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: 300V
Related Products
Sullins Connector Solutions
PEC33DADN
Amphenol ICC (FCI)
95157-206VLF
Samtec Inc.
TMM-117-03-G-S
Samtec Inc.
FTE-106-01-G-DH
Samtec Inc.
TS-110-T-A
Samtec Inc.
TSW-105-07-F-T
Samtec Inc.
BDL-134-T-E
JST Sales America Inc.

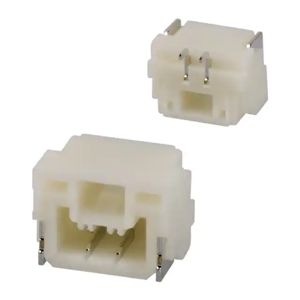

SM02B-GHS-TB(LF)(SN)
