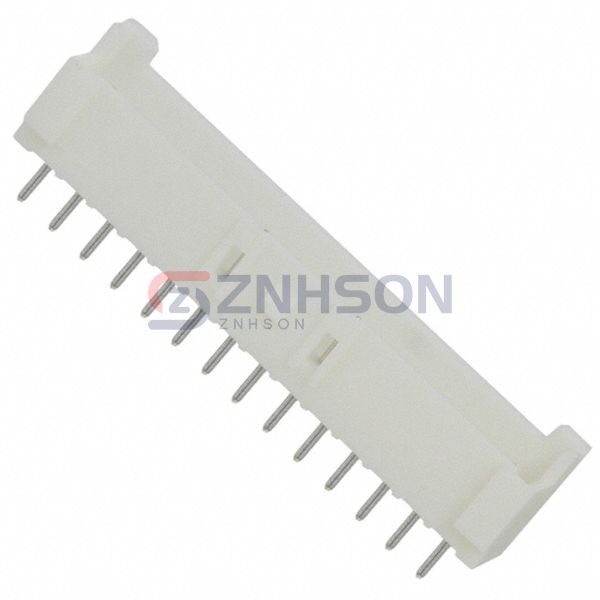

1-2132415-4
TE Connectivity AMP Connectors
TE Connectivity AMP Connectors
CONN HEADER VERT 14POS 2.5MM
$0.88
Available to order
Reference Price (USD)
1+
$0.77000
10+
$0.72400
100+
$0.55530
500+
$0.48288
1,000+
$0.39838
5,000+
$0.35009
10,000+
$0.32594
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your electronic assemblies with the 1-2132415-4 rectangular connector header from TE Connectivity AMP Connectors. These male pin connectors are built for high-performance applications, offering excellent signal integrity and durability. Suitable for use in automotive, medical, and telecommunications industries, the 1-2132415-4 meets the highest industry standards. TE Connectivity AMP Connectors provides connectors that ensure long-term reliability and performance.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.098" (2.50mm)
- Number of Positions: 14
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Kinked Pin, Solder
- Fastening Type: Friction Lock
- Contact Length - Mating: 0.141" (3.60mm)
- Contact Length - Post: 0.134" (3.40mm)
- Overall Contact Length: -
- Insulation Height: 0.346" (8.80mm)
- Contact Shape: Circular
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 80.0µin (2.03µm)
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polyamide (PA66), Nylon 6/6
- Features: -
- Operating Temperature: -55°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Natural
- Current Rating (Amps): 4.2A
- Voltage Rating: 250VAC
Related Products
Sullins Connector Solutions
PBC33DFCN
Preci-Dip
860-80-048-40-001101
TE Connectivity AMP Connectors
1-215464-6
TE Connectivity AMP Connectors
9-146278-0-29
Samtec Inc.
ZSS-108-07-G-D-540
Molex
2077600671
Samtec Inc.
TSW-145-08-S-D-RA

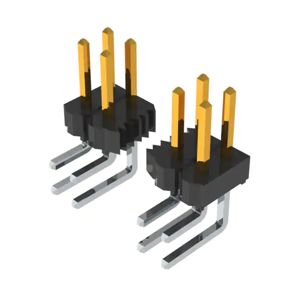

Samtec Inc.
