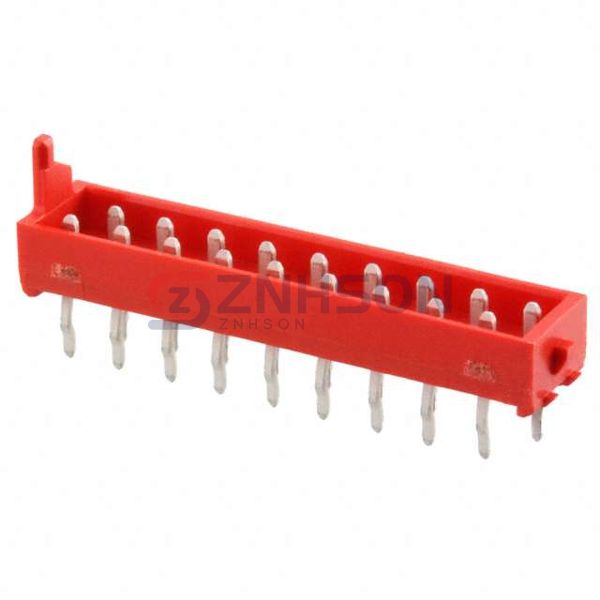

1-215464-8
TE Connectivity AMP Connectors
TE Connectivity AMP Connectors
CONN HEADER VERT 18POS 2.54MM
$0.88
Available to order
Reference Price (USD)
1+
$0.88000
500+
$0.8712
1000+
$0.8624
1500+
$0.8536
2000+
$0.8448
2500+
$0.836
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 1-215464-8 male pin header by TE Connectivity AMP Connectors provides a reliable solution for rectangular connectors. Designed for ease of use and high performance, these headers are suitable for a wide range of applications, including LED lighting, HVAC systems, and portable devices. TE Connectivity AMP Connectors guarantees connectors that enhance your product's functionality and lifespan.
Specifications
- Product Status: Discontinued at Digi-Key
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 18
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Press-Fit, Solder
- Fastening Type: Latch Lock
- Contact Length - Mating: -
- Contact Length - Post: 0.122" (3.10mm)
- Overall Contact Length: -
- Insulation Height: 0.142" (3.60mm)
- Contact Shape: Rectangular
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 118.1µin (3.00µm)
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polybutylene Terephthalate (PBT), Glass Filled
- Features: -
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Red
- Current Rating (Amps): 1.5A
- Voltage Rating: 230V
Related Products
Samtec Inc.
TMM-104-06-T-S-SM
Molex
0702473051
Samtec Inc.
ZSS-105-08-S-D-1175-LL
Samtec Inc.
FTS-142-01-L-D
TE Connectivity AMP Connectors
5-146254-1
Molex
0878321208
Samtec Inc.

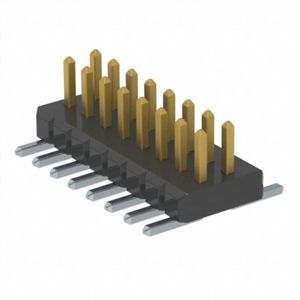

FTM-108-03-L-DV-P-TR
Samtec Inc.

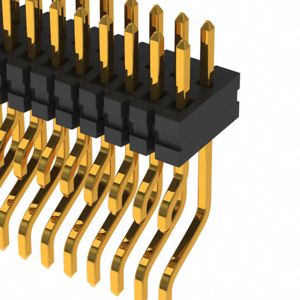

FTE-151-01-G-DH
Molex

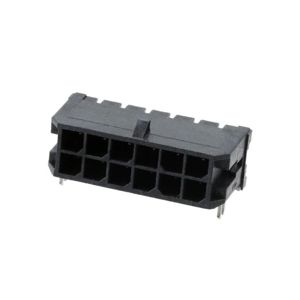

0430451207
