1-2355172-0
TE Connectivity AMP Connectors
TE Connectivity AMP Connectors
10P,2MM,BRK HDR,SRVT,2.8,0.1AU,B
$1.09
Available to order
Reference Price (USD)
1+
$1.09000
500+
$1.0791
1000+
$1.0682
1500+
$1.0573
2000+
$1.0464
2500+
$1.0355
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram

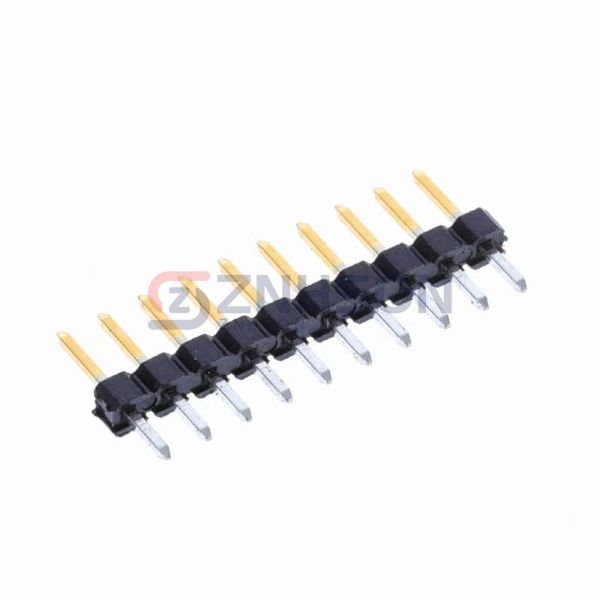

Choose the 1-2355172-0 rectangular connector header from TE Connectivity AMP Connectors for superior male pin interconnections. These headers are engineered for high-density applications, offering excellent conductivity and mechanical stability. Common uses include server racks, test equipment, and marine electronics. TE Connectivity AMP Connectors is committed to providing connectors that exceed industry expectations.
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.079" (2.00mm)
- Number of Positions: 10
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.157" (4.00mm)
- Contact Length - Post: 0.110" (2.79mm)
- Overall Contact Length: 0.327" (8.30mm)
- Insulation Height: 0.059" (1.50mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 3.94µin (0.100µm)
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Thermoplastic
- Features: -
- Operating Temperature: -40°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 2A
- Voltage Rating: 125VAC/DC
Related Products
Samtec Inc.
FTE-123-01-G-DV
Molex
0436500213
Molex
0702871144
Samtec Inc.
TMM-109-05-S-D-SM-A
Molex
0532581129
JST Sales America Inc.
SM12B-SURS-TF(LF)(SN)
Molex
0022285103

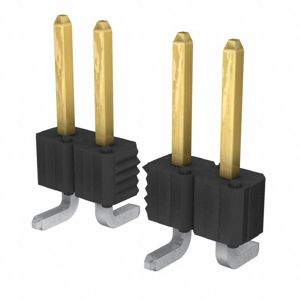

Amphenol ICC (FCI)
