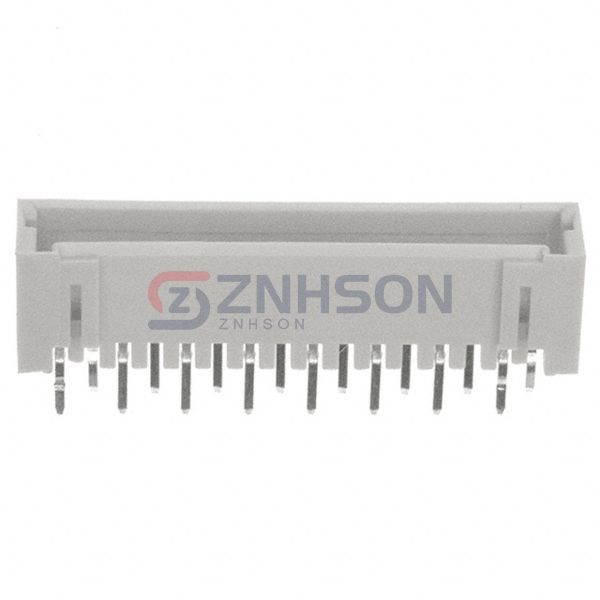

1-292207-6
TE Connectivity AMP Connectors
TE Connectivity AMP Connectors
CONN HEADER VERT 16POS 1.5MM
$1.11
Available to order
Reference Price (USD)
1+
$1.07000
10+
$0.94600
100+
$0.82400
550+
$0.68478
1,100+
$0.61515
5,500+
$0.54550
10,450+
$0.52113
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 1-292207-6 male pin header by TE Connectivity AMP Connectors provides a reliable solution for rectangular connectors. Designed for ease of use and high performance, these headers are suitable for a wide range of applications, including LED lighting, HVAC systems, and portable devices. TE Connectivity AMP Connectors guarantees connectors that enhance your product's functionality and lifespan.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.059" (1.50mm)
- Number of Positions: 16
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Kinked Pin, Solder
- Fastening Type: Detent Lock
- Contact Length - Mating: 0.094" (2.40mm)
- Contact Length - Post: 0.118" (3.00mm)
- Overall Contact Length: 0.307" (7.80mm)
- Insulation Height: 0.272" (6.91mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 39.4µin (1.00µm)
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polyamide (PA), Nylon, Glass Filled
- Features: Board Guide
- Operating Temperature: -30°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Gray
- Current Rating (Amps): Varies by Wire Gauge
- Voltage Rating: 50VAC
