1-5176837-8
TE Connectivity AMP Connectors
TE Connectivity AMP Connectors
CONN HEADER R/A 38POS 2MM
$2.87
Available to order
Reference Price (USD)
1+
$3.49000
16+
$3.35438
112+
$2.79527
512+
$2.37596
1,008+
$2.02655
5,008+
$1.81691
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your electronic assemblies with the 1-5176837-8 rectangular connector header from TE Connectivity AMP Connectors. These male pin connectors are built for high-performance applications, offering excellent signal integrity and durability. Suitable for use in automotive, medical, and telecommunications industries, the 1-5176837-8 meets the highest industry standards. TE Connectivity AMP Connectors provides connectors that ensure long-term reliability and performance.
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.079" (2.00mm)
- Number of Positions: 38
- Number of Rows: 2
- Row Spacing - Mating: 0.079" (2.00mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.157" (4.00mm)
- Contact Length - Post: 0.102" (2.60mm)
- Overall Contact Length: -
- Insulation Height: 0.165" (4.20mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 8.00µin (0.203µm)
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Thermoplastic
- Features: -
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 1A
- Voltage Rating: 200VAC
Related Products
Amphenol ICC (FCI)
95293-402B03LF
Harwin Inc.
M20-9763642
Samtec Inc.
TSM-125-01-F-DV-P-TR
Samtec Inc.
TMS-105-01-G-S
Samtec Inc.
TSW-111-14-G-S
Samtec Inc.
TSM-110-01-SM-DH-A-K
TE Connectivity AMP Connectors
6-104069-3
Samtec Inc.
FTS-105-02-L-D-P
Samtec Inc.

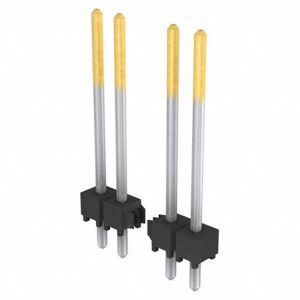

TSW-126-17-S-S
