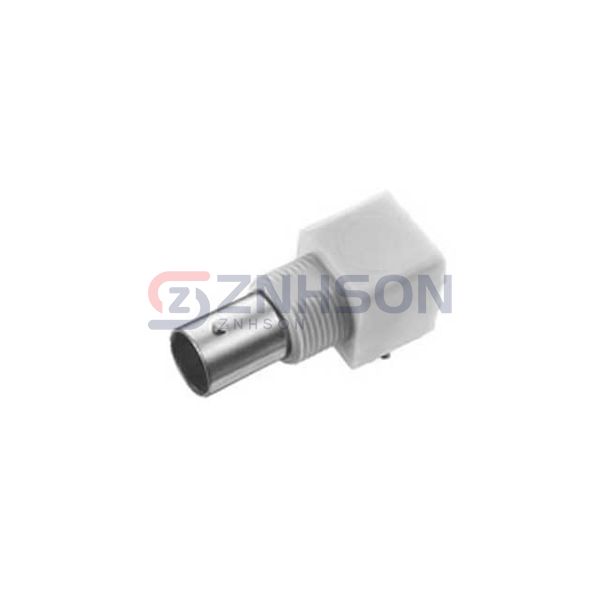

1-5227161-7
TE Connectivity AMP Connectors
TE Connectivity AMP Connectors
CONN BNC JACK R/A 50 OHM PCB
$6.49
Available to order
Reference Price (USD)
1+
$5.12000
10+
$4.91300
35+
$4.50343
70+
$4.29871
105+
$4.09410
280+
$3.58229
525+
$3.47994
1,015+
$2.96820
2,520+
$2.76349
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Engineered for excellence, the 1-5227161-7 from TE Connectivity AMP Connectors sets new standards in Coaxial Connectors (RF) performance. These connectors utilize ultra-precision machining to achieve consistent 50 or 75 impedance matching across all mating cycles. The product line includes SMA, N-type, TNC, and BNC variants with options for straight, right-angle, and bulkhead mounting. Specialized versions feature phase-matched designs for critical array applications. Key industries served include: Satellite communication ground stations Electronic warfare systems High-speed data acquisition systems Microwave radio links. The 1-5227161-7 series stands out with its hybrid design combining the durability of metal connectors with the weight savings of composite materials, ideal for airborne electronic systems.
Specifications
- Product Status: Active
- Connector Style: BNC
- Connector Type: Jack, Female Socket
- Contact Termination: Solder
- Shield Termination: Solder
- Impedance: 50Ohm
- Mounting Type: Panel Mount, Through Hole, Right Angle
- Mounting Feature: Bulkhead - Front Side Nut
- Cable Group: -
- Fastening Type: Bayonet Lock
- Frequency - Max: 4 GHz
- Number of Ports: 1
- Features: Board Guide, Isolated
- Housing Color: -
- Ingress Protection: -
- Center Contact Material: Phosphor Bronze
