1-770969-1
TE Connectivity AMP Connectors
TE Connectivity AMP Connectors

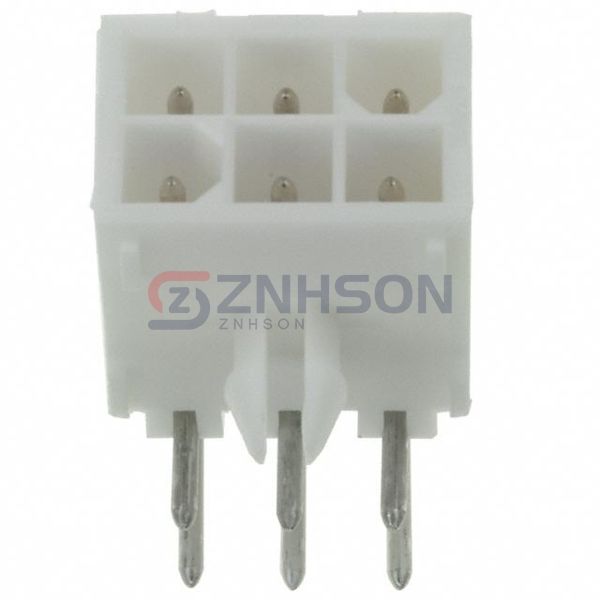

CONN HEADER R/A 6POS 4.14MM
$3.96
Available to order
Reference Price (USD)
1+
$3.25000
10+
$3.12500
100+
$2.60390
500+
$2.21330
1,000+
$1.88781
5,000+
$1.69252
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 1-770969-1 male pin header by TE Connectivity AMP Connectors provides a reliable solution for rectangular connectors. Designed for ease of use and high performance, these headers are suitable for a wide range of applications, including LED lighting, HVAC systems, and portable devices. TE Connectivity AMP Connectors guarantees connectors that enhance your product's functionality and lifespan.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.163" (4.14mm)
- Number of Positions: 6
- Number of Rows: 2
- Row Spacing - Mating: 0.163" (4.14mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Locking Ramp
- Contact Length - Mating: -
- Contact Length - Post: 0.145" (3.68mm)
- Overall Contact Length: -
- Insulation Height: 0.386" (9.80mm)
- Contact Shape: Circular
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 30.0µin (0.76µm)
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polyamide (PA), Nylon
- Features: Board Lock
- Operating Temperature: -20°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: White
- Current Rating (Amps): Varies by Wire Gauge
- Voltage Rating: 600VAC
