1-776163-2
TE Connectivity AMP Connectors
TE Connectivity AMP Connectors
CONN HEADER R/A 35POS 4MM
$20.13
Available to order
Reference Price (USD)
1+
$14.37000
10+
$13.06000
100+
$11.10100
500+
$9.46850
1,000+
$8.68490
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram

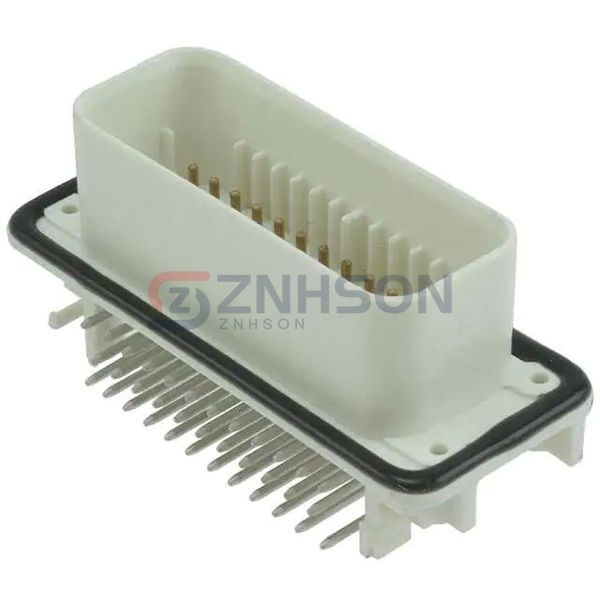

The 1-776163-2 male pin header by TE Connectivity AMP Connectors provides a reliable solution for rectangular connectors. Designed for ease of use and high performance, these headers are suitable for a wide range of applications, including LED lighting, HVAC systems, and portable devices. TE Connectivity AMP Connectors guarantees connectors that enhance your product's functionality and lifespan.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.157" (4.00mm)
- Number of Positions: 35
- Number of Rows: 3
- Row Spacing - Mating: 0.157" (4.00mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Panel Mount, Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Locking Ramp
- Contact Length - Mating: -
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: -
- Contact Shape: Circular
- Contact Finish - Mating: Gold-Palladium
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: -
- Contact Material: Brass
- Insulation Material: Polybutylene Terephthalate (PBT), Glass Filled
- Features: Board Guide, Sealed
- Operating Temperature: -40°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: -
- Insulation Color: Natural
- Current Rating (Amps): Varies by Wire Gauge
- Voltage Rating: 250VAC
