1-794070-1
TE Connectivity AMP Connectors
TE Connectivity AMP Connectors
CONN HEADER VERT 20POS 4.14MM
$8.69
Available to order
Reference Price (USD)
1+
$7.62000
10+
$7.30500
100+
$6.03440
500+
$5.08162
1,000+
$4.44641
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram

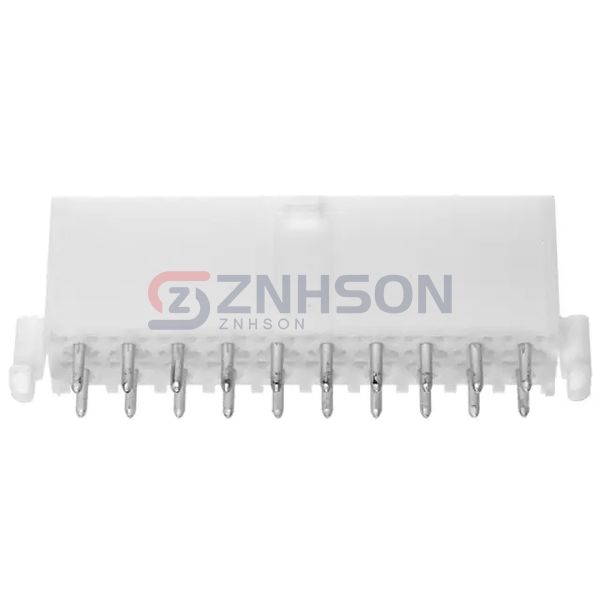

The 1-794070-1 by TE Connectivity AMP Connectors is a versatile rectangular connector header designed for male pin connections. With a focus on quality and precision, these headers support various PCB layouts and configurations. Ideal for applications in robotics, power supplies, and audio equipment. TE Connectivity AMP Connectors delivers connectors that meet the needs of modern electronics with unmatched reliability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.163" (4.14mm)
- Number of Positions: 20
- Number of Rows: 2
- Row Spacing - Mating: 0.163" (4.14mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Locking Ramp
- Contact Length - Mating: -
- Contact Length - Post: 0.175" (4.45mm)
- Overall Contact Length: -
- Insulation Height: 0.531" (13.50mm)
- Contact Shape: Circular
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 30.0µin (0.76µm)
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polyamide (PA), Nylon
- Features: Board Lock
- Operating Temperature: -20°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: White
- Current Rating (Amps): Varies by Wire Gauge
- Voltage Rating: 600VAC
Related Products
Molex
0457320001
Mill-Max Manufacturing Corp.
802-10-064-30-052000
Samtec Inc.
TSM-106-01-T-SH-LC-P-TR
Amphenol ICC (FCI)
76384-311LF
Samtec Inc.
TMM-150-01-S-S-RE
Preci-Dip
802-10-066-30-480101
TE Connectivity AMP Connectors
1955660-7
Samtec Inc.

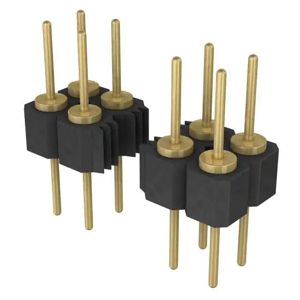

TD-119-G-A
