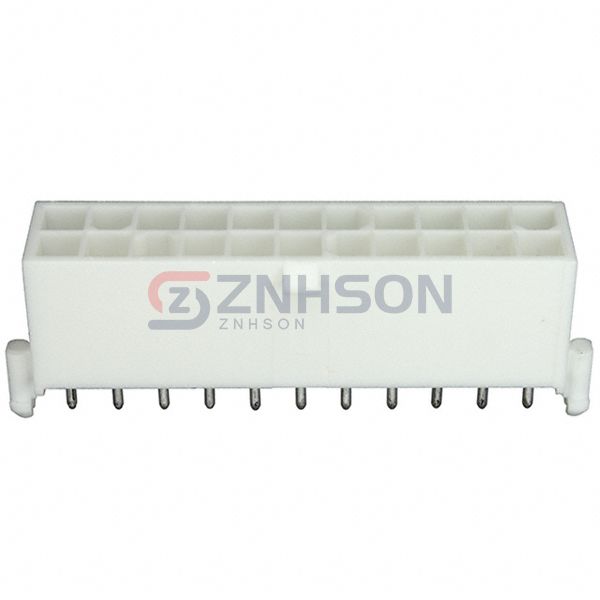

1-794071-0

TE Connectivity AMP Connectors

Manufacturer

TE Connectivity AMP Connectors

Description:

CONN HEADER VERT 22POS 4.14MM

Datasheet:

1-794071-0 Datasheet

$5.38

Available to order

Reference Price (USD)

$4.22000

10+

$4.05000

100+

$3.37480

500+

$2.86858

1,000+

$2.44673

Exquisite packaging

Discount

TT / Paypal / Credit Card / Western Union / Money Gram

Enhance your electronic assemblies with the 1-794071-0 rectangular connector header from TE Connectivity AMP Connectors. These male pin connectors are built for high-performance applications, offering excellent signal integrity and durability. Suitable for use in automotive, medical, and telecommunications industries, the 1-794071-0 meets the highest industry standards. TE Connectivity AMP Connectors provides connectors that ensure long-term reliability and performance.

Specifications

Product Status: Active
Connector Type: Header
Contact Type: Male Pin
Pitch - Mating: 0.163" (4.14mm)
Number of Positions: 22
Number of Rows: 2
Row Spacing - Mating: 0.163" (4.14mm)
Number of Positions Loaded: All
Style: Board to Cable/Wire
Shrouding: Shrouded - 4 Wall
Mounting Type: Through Hole
Termination: Solder
Fastening Type: Locking Ramp
Contact Length - Mating: -
Contact Length - Post: 0.175" (4.45mm)
Overall Contact Length: -
Insulation Height: 0.531" (13.50mm)
Contact Shape: Circular
Contact Finish - Mating: Tin
Contact Finish Thickness - Mating: 150.0µin (3.81µm)
Contact Finish - Post: Tin
Contact Material: Brass
Insulation Material: Polyamide (PA), Nylon
Features: Board Lock
Operating Temperature: -20°C ~ 85°C
Ingress Protection: -
Material Flammability Rating: UL94 V-0
Insulation Color: White
Current Rating (Amps): Varies by Wire Gauge
Voltage Rating: 600VAC

Shopping cart

1-794071-0

Reference Price (USD)

Specifications

Related Products

77317-403-06LF

4-641214-3

77315-413-04LF

34826-0162

TSM-103-03-L-DV-A

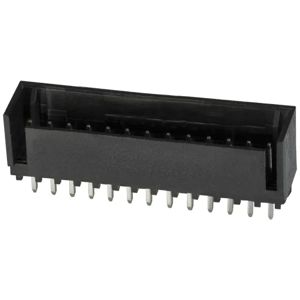

3-644486-3

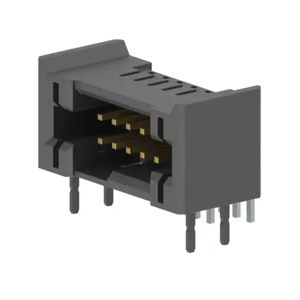

TFM-105-01-L-D-RE2-WT

TLW-120-05-G-D

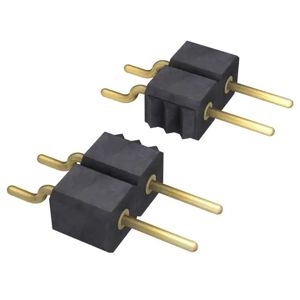

800-10-030-40-001101

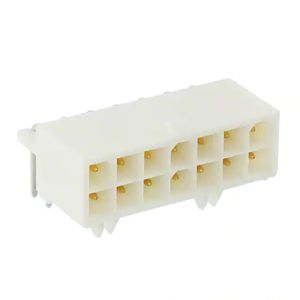

1-770973-1
