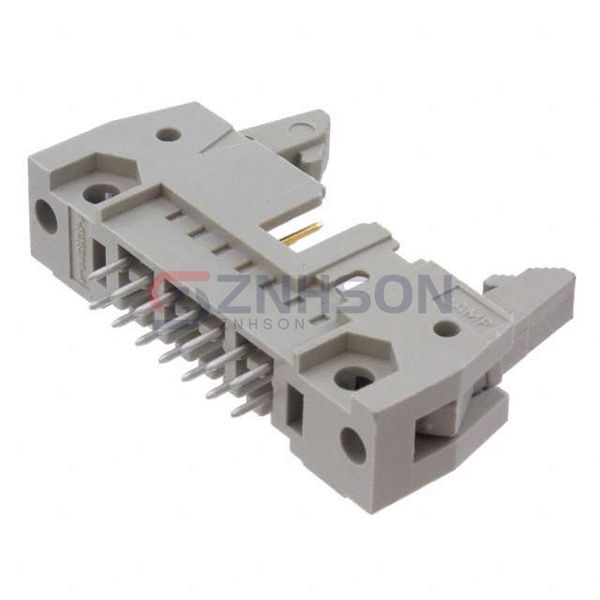

1-828588-4
TE Connectivity AMP Connectors
TE Connectivity AMP Connectors
CONN HEADER VERT 14POS 2.54MM
$1.40
Available to order
Reference Price (USD)
1+
$1.40000
500+
$1.386
1000+
$1.372
1500+
$1.358
2000+
$1.344
2500+
$1.33
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the 1-828588-4 rectangular connector header from TE Connectivity AMP Connectors, a top choice for male pin interconnections. These headers provide exceptional mechanical strength and electrical performance. With options for through-hole or surface mount, the 1-828588-4 adapts to different assembly processes. Ideal for use in automotive electronics, consumer gadgets, and IoT devices. TE Connectivity AMP Connectors guarantees connectors that enhance your product's reliability and efficiency.
Specifications
- Product Status: Obsolete
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 14
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Latch Lock/Eject Hooks
- Contact Length - Mating: 0.246" (6.25mm)
- Contact Length - Post: 0.118" (3.00mm)
- Overall Contact Length: 0.652" (16.56mm)
- Insulation Height: 0.543" (13.80mm)
- Contact Shape: Circular
- Contact Finish - Mating: Gold or Gold-Palladium
- Contact Finish Thickness - Mating: 31.5µin (0.80µm)
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polyester, Glass Filled
- Features: Mounting Flange
- Operating Temperature: -
- Ingress Protection: -
- Material Flammability Rating: -
- Insulation Color: Gray
- Current Rating (Amps): -
- Voltage Rating: -
Related Products
Samtec Inc.
TMM-115-06-L-D
Amphenol ICC (FCI)
54101-G08-04LF
Samtec Inc.
HTSW-103-14-S-S
Samtec Inc.
TMM-103-01-L-D-RA
Samtec Inc.
EHF-108-01-L-D-SM-K-TR
Samtec Inc.
TSM-104-02-T-DH-LC
TE Connectivity AMP Connectors

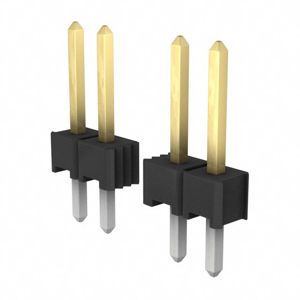

5-146280-9
Samtec Inc.

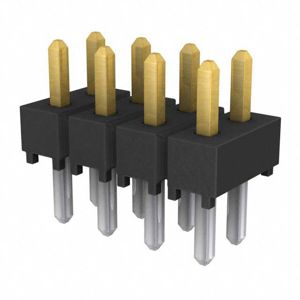

TSW-104-05-S-D
