10073456-019LF
Amphenol ICC (FCI)
Amphenol ICC (FCI)

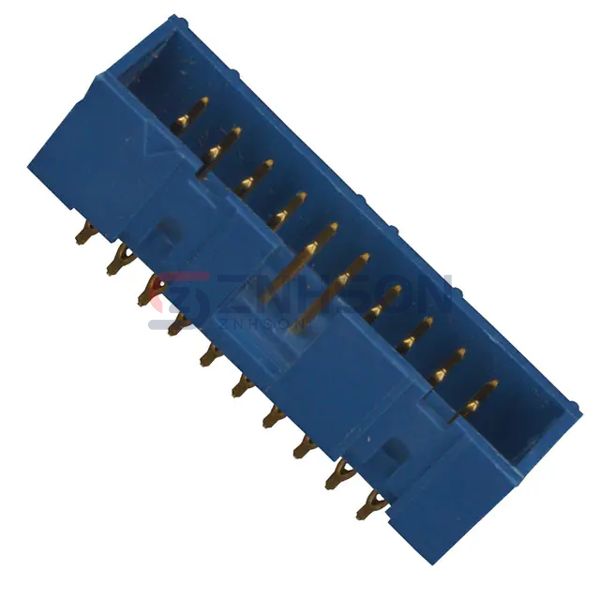

CONN HEADER VERT 20POS 2.54MM
$6.04
Available to order
Reference Price (USD)
1+
$4.82000
10+
$4.64200
130+
$3.92785
520+
$3.39225
1,040+
$2.94590
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 10073456-019LF male pin header by Amphenol ICC (FCI) offers a dependable solution for rectangular connectors. Designed for easy integration, these headers ensure consistent connectivity in demanding environments. Features include high-temperature resistance and superior contact stability. Applications range from industrial machinery to smart home systems. Choose Amphenol ICC (FCI) for connectors that combine innovation with durability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 20
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Press-Fit, Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.230" (5.84mm)
- Contact Length - Post: 0.160" (4.06mm)
- Overall Contact Length: 0.510" (12.95mm)
- Insulation Height: 0.365" (9.27mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 30.0µin (0.76µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polyester, Glass Filled
- Features: Keying Slot
- Operating Temperature: -
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Blue
- Current Rating (Amps): -
- Voltage Rating: -
