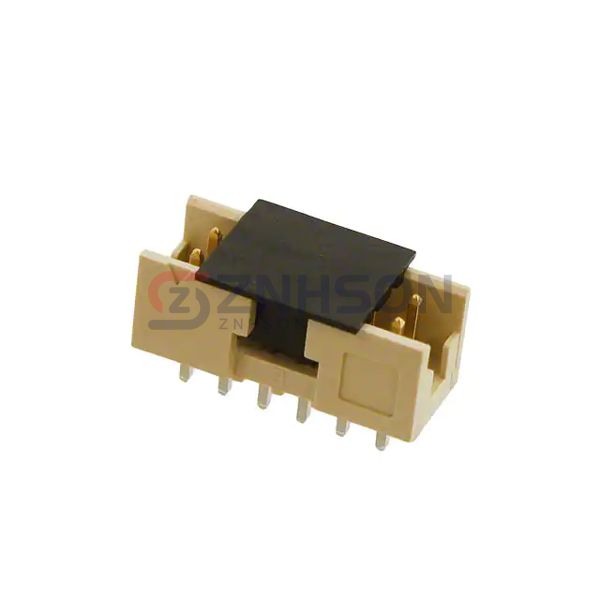

10075025-G01-12ALF
Amphenol ICC (FCI)
Amphenol ICC (FCI)
CONN HEADER VERT 12POS 2MM
$2.20
Available to order
Reference Price (USD)
650+
$0.74375
1,300+
$0.66112
1,950+
$0.61980
3,250+
$0.59914
6,500+
$0.57848
16,250+
$0.53716
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the 10075025-G01-12ALF rectangular connector header from Amphenol ICC (FCI), a top choice for male pin interconnections. These headers provide exceptional mechanical strength and electrical performance. With options for through-hole or surface mount, the 10075025-G01-12ALF adapts to different assembly processes. Ideal for use in automotive electronics, consumer gadgets, and IoT devices. Amphenol ICC (FCI) guarantees connectors that enhance your product's reliability and efficiency.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.079" (2.00mm)
- Number of Positions: 12
- Number of Rows: 2
- Row Spacing - Mating: 0.079" (2.00mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Detent Lock
- Contact Length - Mating: 0.157" (4.00mm)
- Contact Length - Post: 0.079" (2.00mm)
- Overall Contact Length: -
- Insulation Height: 0.220" (5.60mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold, GXT™
- Contact Finish Thickness - Mating: 30.0µin (0.76µm)
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Thermoplastic
- Features: Keying Slot, Pick and Place
- Operating Temperature: -
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Natural
- Current Rating (Amps): 2A (AC/DC)
- Voltage Rating: 200V (AC/DC)
