10132449-1021GLF
Amphenol ICC (FCI)
Amphenol ICC (FCI)

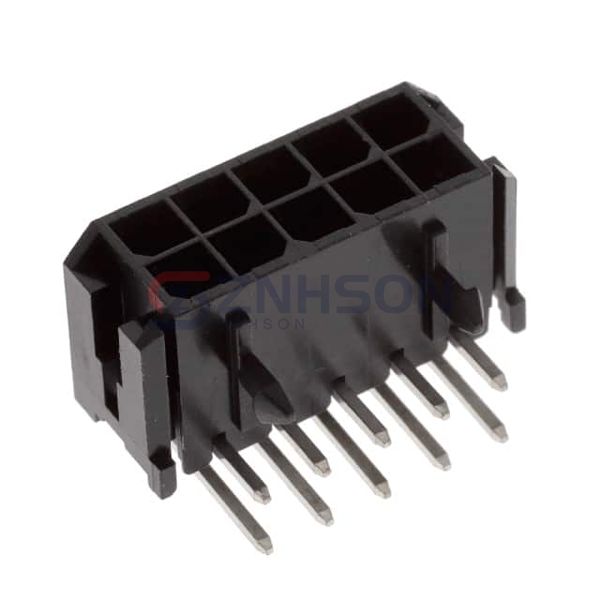

CONN HEADER R/A 10POS 3MM
$1.22
Available to order
Reference Price (USD)
1+
$0.73000
10+
$0.64100
182+
$0.55286
546+
$0.45234
1,092+
$0.40208
5,096+
$0.35182
10,010+
$0.33423
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the 10132449-1021GLF rectangular connector header from Amphenol ICC (FCI), a top choice for male pin interconnections. These headers provide exceptional mechanical strength and electrical performance. With options for through-hole or surface mount, the 10132449-1021GLF adapts to different assembly processes. Ideal for use in automotive electronics, consumer gadgets, and IoT devices. Amphenol ICC (FCI) guarantees connectors that enhance your product's reliability and efficiency.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.118" (3.00mm)
- Number of Positions: 10
- Number of Rows: 2
- Row Spacing - Mating: 0.118" (3.00mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Locking Ramp
- Contact Length - Mating: -
- Contact Length - Post: 0.126" (3.20mm)
- Overall Contact Length: -
- Insulation Height: 0.343" (8.71mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 60.0µin (1.52µm)
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Polyamide (PA9T), Nylon 9T
- Features: Board Lock, Glow Wire Compliant
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): Varies by Wire Gauge
- Voltage Rating: 250V
