10140952-102LF
Amphenol ICC (FCI)
Amphenol ICC (FCI)

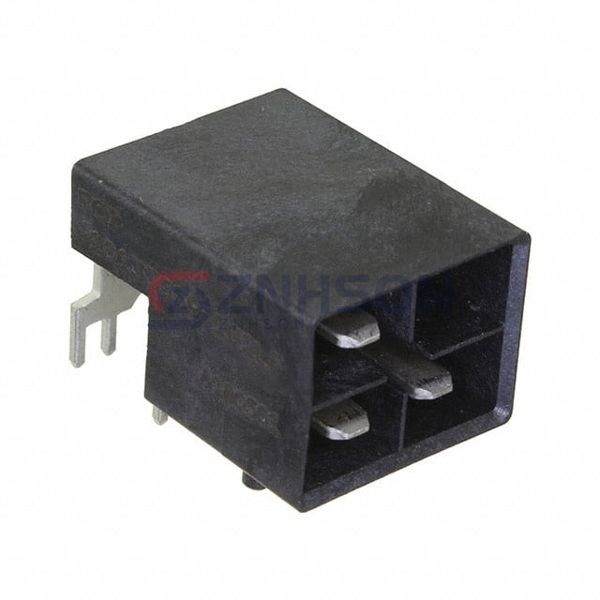

CONN HEADER R/A 4POS 6.3MM
$9.36
Available to order
Reference Price (USD)
150+
$6.48373
300+
$5.80127
750+
$5.11875
1,050+
$4.77750
1,500+
$4.67513
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your electronic assemblies with the 10140952-102LF rectangular connector header from Amphenol ICC (FCI). These male pin connectors are built for high-performance applications, offering excellent signal integrity and durability. Suitable for use in automotive, medical, and telecommunications industries, the 10140952-102LF meets the highest industry standards. Amphenol ICC (FCI) provides connectors that ensure long-term reliability and performance.
Specifications
- Product Status: Active
- Connector Type: Plug
- Contact Type: Male Blade
- Pitch - Mating: 0.248" (6.30mm)
- Number of Positions: 4 (Power)
- Number of Rows: 2
- Row Spacing - Mating: 0.224" (5.70mm)
- Number of Positions Loaded: 3
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Latch Holder
- Contact Length - Mating: 0.295" (7.49mm)
- Contact Length - Post: 0.106" (2.69mm)
- Overall Contact Length: -
- Insulation Height: 0.492" (12.50mm)
- Contact Shape: Rectangular
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Liquid Crystal Polymer (LCP), Glass Filled
- Features: Board Guide
- Operating Temperature: -55°C ~ 85°C
- Ingress Protection: IP67
- Material Flammability Rating: UL94 V-0
- Insulation Color: -
- Current Rating (Amps): -
- Voltage Rating: -
