10142708-10200LF
Amphenol ICC (FCI)
Amphenol ICC (FCI)

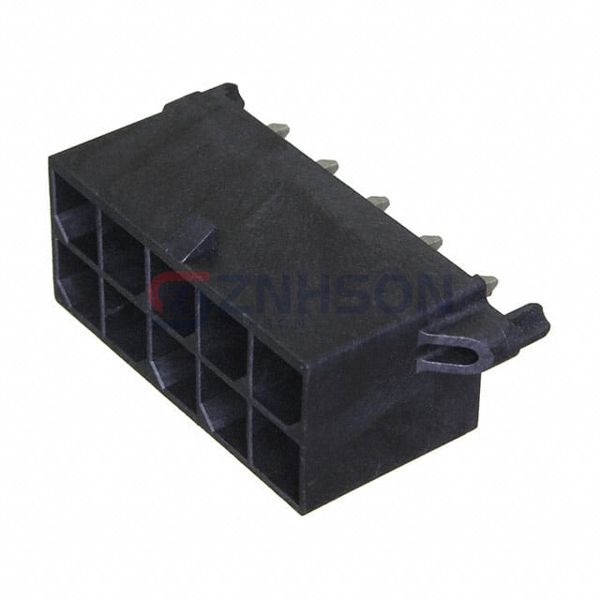

CONN HEADER VERT 10POS 5.7MM
$2.24
Available to order
Reference Price (USD)
1+
$2.40000
10+
$2.17700
25+
$2.04400
50+
$1.95520
143+
$1.86629
286+
$1.68853
572+
$1.55523
1,001+
$1.33305
2,574+
$1.24418
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Choose the 10142708-10200LF rectangular connector header from Amphenol ICC (FCI) for superior male pin interconnections. These headers are engineered for high-density applications, offering excellent conductivity and mechanical stability. Common uses include server racks, test equipment, and marine electronics. Amphenol ICC (FCI) is committed to providing connectors that exceed industry expectations.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.224" (5.70mm)
- Number of Positions: 10
- Number of Rows: 2
- Row Spacing - Mating: 0.224" (5.70mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Locking Ramp
- Contact Length - Mating: -
- Contact Length - Post: 0.147" (3.73mm)
- Overall Contact Length: -
- Insulation Height: 0.583" (14.80mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 100.0µin (2.54µm)
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Liquid Crystal Polymer (LCP), Halogen Free
- Features: Board Guide, Glow Wire Compliant
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: 600VAC/DC
