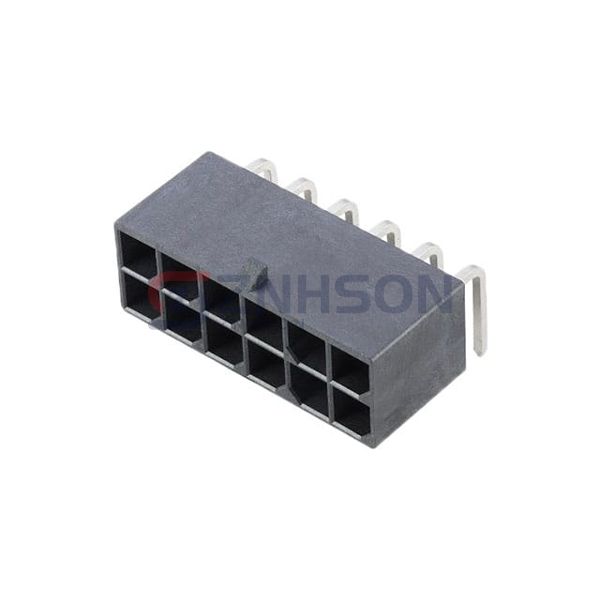

10146997-02000LF
Amphenol ICC (FCI)
Amphenol ICC (FCI)
CONN 5.70MM RIGHT ANGLE TH
$2.60
Available to order
Reference Price (USD)
1+
$2.60000
500+
$2.574
1000+
$2.548
1500+
$2.522
2000+
$2.496
2500+
$2.47
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your interconnections with the 10146997-02000LF rectangular connector header from Amphenol ICC (FCI). These male pin headers feature a rugged design for high-stress environments. Offering excellent electrical and mechanical properties, the 10146997-02000LF is perfect for automotive, industrial, and consumer electronics. Amphenol ICC (FCI) ensures each connector is tested for performance and durability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.224" (5.70mm)
- Number of Positions: 2
- Number of Rows: 2
- Row Spacing - Mating: 0.224" (5.70mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Locking Ramp
- Contact Length - Mating: -
- Contact Length - Post: 0.142" (3.60mm)
- Overall Contact Length: -
- Insulation Height: 0.572" (14.53mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 30.0µin (0.76µm)
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Liquid Crystal Polymer (LCP), Halogen Free
- Features: Board Guide, Glow Wire Compliant
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: 600VAC/DC
