10159560-200421RLF
Amphenol ICC (FCI)
Amphenol ICC (FCI)
POWERSTAK VERTICAL HEADER 2POS H
$2.13
Available to order
Reference Price (USD)
1+
$2.13000
500+
$2.1087
1000+
$2.0874
1500+
$2.0661
2000+
$2.0448
2500+
$2.0235
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram

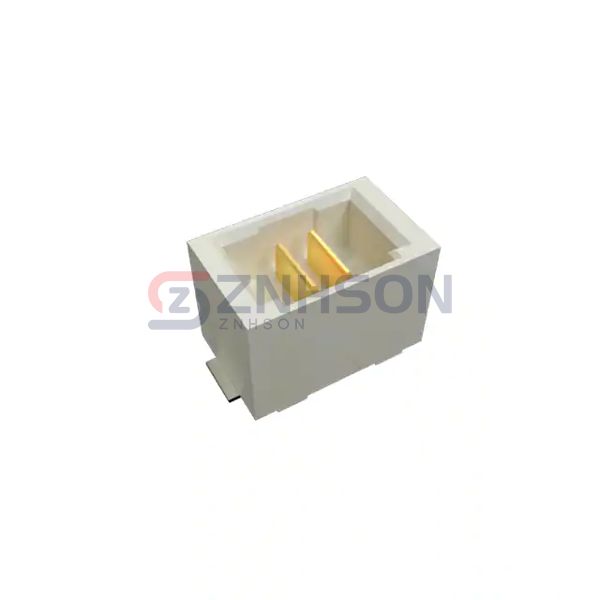

The 10159560-200421RLF from Amphenol ICC (FCI) is a high-quality rectangular connector header designed for reliable interconnections in various electronic applications. These male pin headers feature a robust construction, ensuring secure and stable connections. Ideal for PCB mounting, the 10159560-200421RLF offers excellent electrical performance and durability. With options for different pin counts and pitches, this connector is versatile for numerous industrial and consumer electronics. Applications include automotive systems, telecommunications equipment, and home appliances. Choose Amphenol ICC (FCI) for precision-engineered connectors that meet global standards.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Blade
- Pitch - Mating: 0.079" (2.00mm)
- Number of Positions: 2 (Power)
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Surface Mount
- Termination: Solder
- Fastening Type: Detent Lock
- Contact Length - Mating: -
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.303" (7.70mm)
- Contact Shape: Rectangular
- Contact Finish - Mating: Gold or Gold, GXT™
- Contact Finish Thickness - Mating: 8.00µin (0.203µm)
- Contact Finish - Post: Gold
- Contact Material: Copper Alloy
- Insulation Material: Thermoplastic
- Features: Board Guide, Pick and Place, Solder Retention
- Operating Temperature: -40°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Natural
- Current Rating (Amps): 20A per Contact
- Voltage Rating: 100VDC
