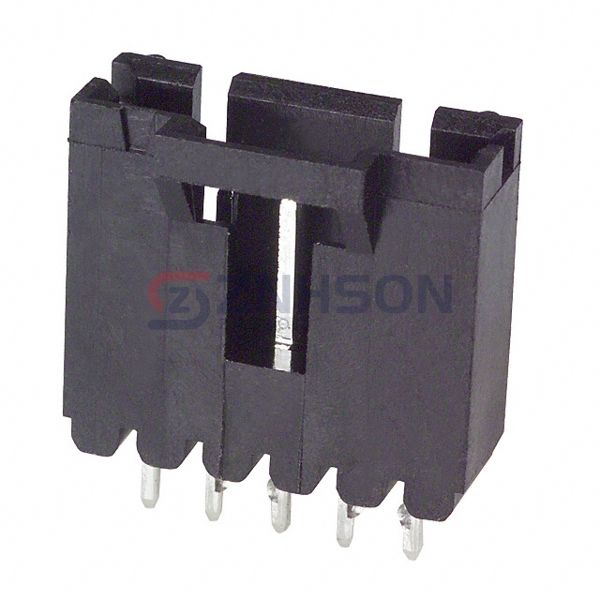

103669-4
TE Connectivity AMP Connectors
TE Connectivity AMP Connectors
CONN HEADER VERT 5POS 2.54MM
$0.54
Available to order
Reference Price (USD)
5,040+
$0.41864
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 103669-4 male pin header by TE Connectivity AMP Connectors provides a reliable solution for rectangular connectors. Designed for ease of use and high performance, these headers are suitable for a wide range of applications, including LED lighting, HVAC systems, and portable devices. TE Connectivity AMP Connectors guarantees connectors that enhance your product's functionality and lifespan.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 5
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Press-Fit, Solder
- Fastening Type: Latch Holder
- Contact Length - Mating: 0.230" (5.84mm)
- Contact Length - Post: 0.130" (3.30mm)
- Overall Contact Length: 0.545" (13.84mm)
- Insulation Height: 0.535" (13.60mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin-Lead
- Contact Finish Thickness - Mating: 100.0µin (2.54µm)
- Contact Finish - Post: Tin-Lead
- Contact Material: Brass
- Insulation Material: Thermoplastic
- Features: Keying Slot
- Operating Temperature: -65°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
Related Products
Hirose Electric Co Ltd
DF3EA-13P-2H(51)
Preci-Dip
852-10-010-30-051101
Amphenol ICC (FCI)
93690-103-08LF
Amphenol ICC (FCI)
54201-S0806LF
Samtec Inc.
TSM-117-01-L-SV-P-TR
TE Connectivity AMP Connectors
5-826634-0
Samtec Inc.

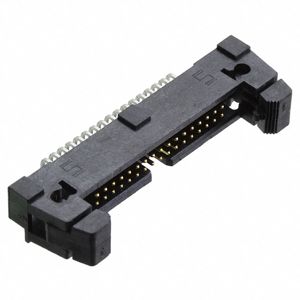

EHF-117-01-SM-D-RA
