103670-9
TE Connectivity AMP Connectors
TE Connectivity AMP Connectors
CONN HEADER VERT 10POS 2.54MM
$2.44
Available to order
Reference Price (USD)
1+
$1.97000
19+
$1.78895
114+
$1.53325
513+
$1.27772
1,007+
$1.09519
5,016+
$0.97107
10,013+
$0.94917
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your electronic assemblies with the 103670-9 rectangular connector header from TE Connectivity AMP Connectors. These male pin connectors are built for high-performance applications, offering excellent signal integrity and durability. Suitable for use in automotive, medical, and telecommunications industries, the 103670-9 meets the highest industry standards. TE Connectivity AMP Connectors provides connectors that ensure long-term reliability and performance.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 10
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Press-Fit, Solder
- Fastening Type: Latch Holder
- Contact Length - Mating: 0.230" (5.84mm)
- Contact Length - Post: 0.130" (3.30mm)
- Overall Contact Length: -
- Insulation Height: 0.535" (13.60mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 15.0µin (0.38µm)
- Contact Finish - Post: Tin-Lead
- Contact Material: Brass
- Insulation Material: Thermoplastic
- Features: Keying Slot
- Operating Temperature: -65°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: 267V
Related Products
TE Connectivity AMP Connectors
794681-2
Samtec Inc.
TSM-103-01-F-SV-A-P-TR
Molex
0015913143
Amphenol ICC (FCI)
67996-850-140030LF
Samtec Inc.

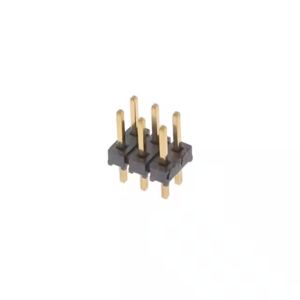

MTMM-103-03-G-D-150
TE Connectivity AMP Connectors

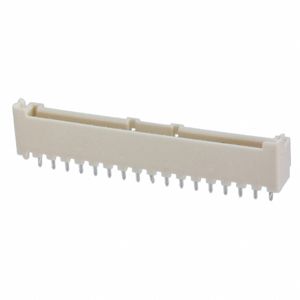

1-1744418-7
Samtec Inc.

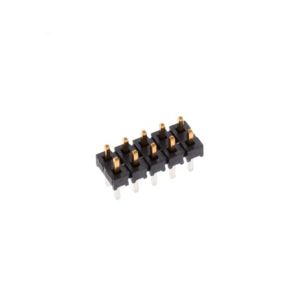

TMM-105-04-L-D
Samtec Inc.
FTSH-125-02-L-DV-P-TR
Samtec Inc.

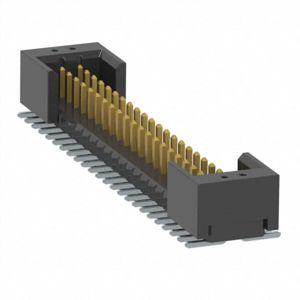

FTM-120-03-F-DV-S
