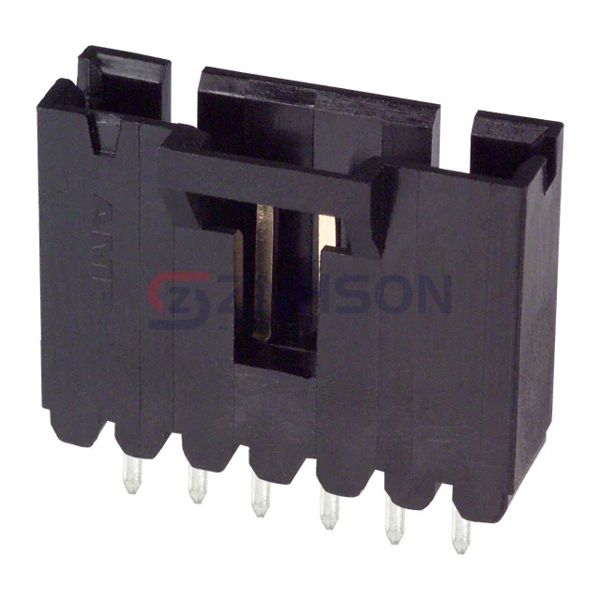

103735-5
TE Connectivity AMP Connectors
TE Connectivity AMP Connectors
CONN HEADER VERT 6POS 2.54MM
$2.03
Available to order
Reference Price (USD)
1+
$1.69000
30+
$1.45167
120+
$1.33567
510+
$1.13241
1,020+
$0.98725
5,010+
$0.88852
10,020+
$0.87109
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your electronic assemblies with the 103735-5 rectangular connector header from TE Connectivity AMP Connectors. These male pin connectors are built for high-performance applications, offering excellent signal integrity and durability. Suitable for use in automotive, medical, and telecommunications industries, the 103735-5 meets the highest industry standards. TE Connectivity AMP Connectors provides connectors that ensure long-term reliability and performance.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 6
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Latch Holder
- Contact Length - Mating: 0.230" (5.84mm)
- Contact Length - Post: 0.130" (3.30mm)
- Overall Contact Length: 0.545" (13.84mm)
- Insulation Height: 0.535" (13.60mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 30.0µin (0.76µm)
- Contact Finish - Post: Tin-Lead
- Contact Material: Brass
- Insulation Material: Thermoplastic
- Features: Keying Slot
- Operating Temperature: -65°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
