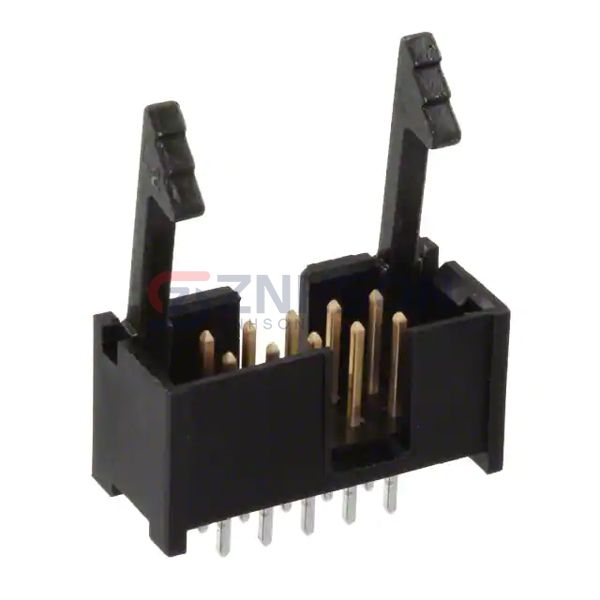

104128-1
TE Connectivity AMP Connectors
TE Connectivity AMP Connectors
CONN HEADER VERT 10POS 2.54MM
$4.49
Available to order
Reference Price (USD)
1+
$3.23000
10+
$3.09900
100+
$2.58290
500+
$2.19544
1,000+
$1.87257
5,000+
$1.67886
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 104128-1 by TE Connectivity AMP Connectors is a premium rectangular connector header designed for male pin connections. Engineered for precision, these headers offer low insertion loss and high mating cycles. Perfect for high-density PCB applications, the 104128-1 supports various configurations to meet diverse needs. Its applications span across data communication, military equipment, and renewable energy systems. TE Connectivity AMP Connectors ensures each connector meets rigorous quality standards for global compliance.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 10
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Latch Lock/Eject Hooks, Long
- Contact Length - Mating: 0.240" (6.10mm)
- Contact Length - Post: 0.120" (3.05mm)
- Overall Contact Length: -
- Insulation Height: 0.385" (9.78mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold or Gold-Palladium
- Contact Finish Thickness - Mating: 30.0µin (0.76µm)
- Contact Finish - Post: Tin-Lead
- Contact Material: Brass
- Insulation Material: Polyamide (PA), Nylon, Glass Filled
- Features: Keying Slot
- Operating Temperature: -65°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 1A per Contact
- Voltage Rating: 250VAC
