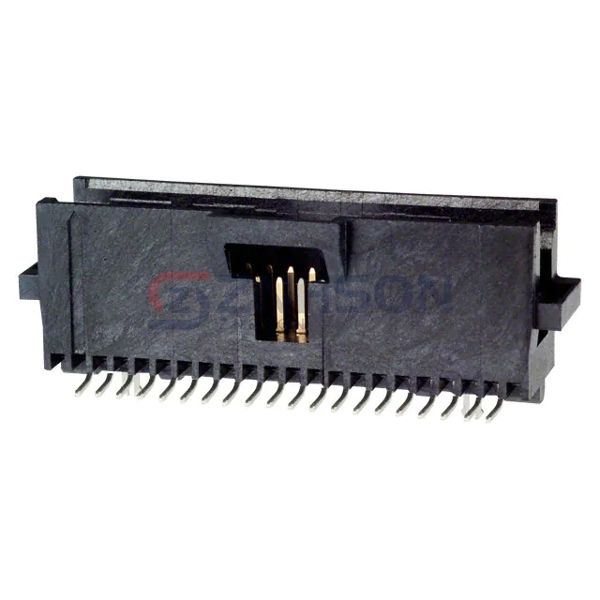

104549-6
TE Connectivity AMP Connectors
TE Connectivity AMP Connectors
CONN HEADER SMD 40POS 1.27MM
$9.03
Available to order
Reference Price (USD)
1+
$9.38000
16+
$8.97625
112+
$7.54804
512+
$6.32400
1,008+
$5.58960
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the 104549-6 rectangular connector header from TE Connectivity AMP Connectors, a top choice for male pin interconnections. These headers provide exceptional mechanical strength and electrical performance. With options for through-hole or surface mount, the 104549-6 adapts to different assembly processes. Ideal for use in automotive electronics, consumer gadgets, and IoT devices. TE Connectivity AMP Connectors guarantees connectors that enhance your product's reliability and efficiency.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.050" (1.27mm)
- Number of Positions: 40
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Surface Mount
- Termination: Solder
- Fastening Type: Latch Holder
- Contact Length - Mating: 0.125" (3.18mm)
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.435" (11.05mm)
- Contact Shape: Circular
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 30.0µin (0.76µm)
- Contact Finish - Post: Tin-Lead
- Contact Material: Copper Alloy
- Insulation Material: Polyphthalamide (PPA)
- Features: Board Lock
- Operating Temperature: -65°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: 30VAC
