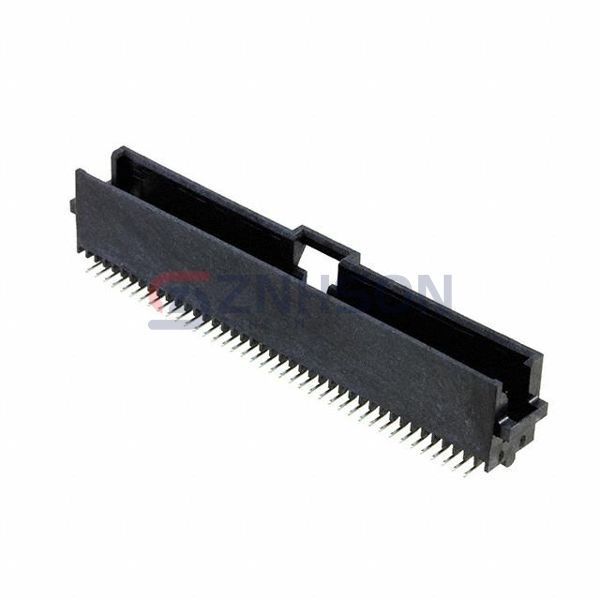

104549-9
TE Connectivity AMP Connectors
TE Connectivity AMP Connectors
CONN HEADER SMD 80POS 1.27MM
$20.44
Available to order
Reference Price (USD)
1+
$21.94000
10+
$19.80600
100+
$17.19700
500+
$15.77380
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 104549-9 from TE Connectivity AMP Connectors is a high-quality rectangular connector header designed for reliable interconnections in various electronic applications. These male pin headers feature a robust construction, ensuring secure and stable connections. Ideal for PCB mounting, the 104549-9 offers excellent electrical performance and durability. With options for different pin counts and pitches, this connector is versatile for numerous industrial and consumer electronics. Applications include automotive systems, telecommunications equipment, and home appliances. Choose TE Connectivity AMP Connectors for precision-engineered connectors that meet global standards.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.050" (1.27mm)
- Number of Positions: 80
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Surface Mount
- Termination: Solder
- Fastening Type: Latch Holder
- Contact Length - Mating: 0.125" (3.18mm)
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.435" (11.05mm)
- Contact Shape: Circular
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 30.0µin (0.76µm)
- Contact Finish - Post: Tin-Lead
- Contact Material: Copper Alloy
- Insulation Material: Polyphthalamide (PPA)
- Features: Board Lock
- Operating Temperature: -65°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: 30VAC
