104666-6
TE Connectivity AMP Connectors
TE Connectivity AMP Connectors

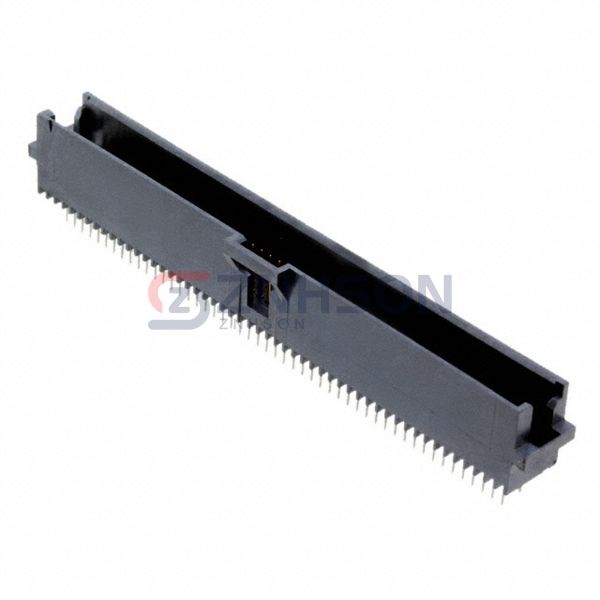

CONN HEADER VERT 100POS 1.27MM
$29.94
Available to order
Reference Price (USD)
1+
$26.18000
14+
$23.63071
105+
$20.51752
504+
$18.81950
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your electronic assemblies with the 104666-6 rectangular connector header from TE Connectivity AMP Connectors. These male pin connectors are built for high-performance applications, offering excellent signal integrity and durability. Suitable for use in automotive, medical, and telecommunications industries, the 104666-6 meets the highest industry standards. TE Connectivity AMP Connectors provides connectors that ensure long-term reliability and performance.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.050" (1.27mm)
- Number of Positions: 100
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 2 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Latch Holder
- Contact Length - Mating: 0.125" (3.18mm)
- Contact Length - Post: 0.145" (3.68mm)
- Overall Contact Length: -
- Insulation Height: 0.390" (9.91mm)
- Contact Shape: Circular
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 30.0µin (0.76µm)
- Contact Finish - Post: Tin-Lead
- Contact Material: Copper Alloy
- Insulation Material: Thermoplastic
- Features: -
- Operating Temperature: -65°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: 30VAC
