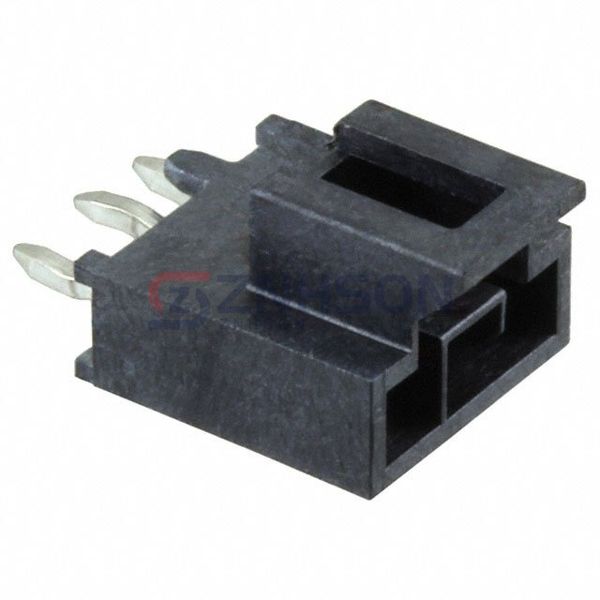

1053091103
Molex
Molex
CONN HEADER VERT 3POS 2.5MM
$1.09
Available to order
Reference Price (USD)
1+
$0.85000
10+
$0.75000
204+
$0.64725
612+
$0.52956
1,020+
$0.47072
5,100+
$0.41188
10,200+
$0.39129
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 1053091103 by Molex is a premium rectangular connector header designed for male pin connections. Engineered for precision, these headers offer low insertion loss and high mating cycles. Perfect for high-density PCB applications, the 1053091103 supports various configurations to meet diverse needs. Its applications span across data communication, military equipment, and renewable energy systems. Molex ensures each connector meets rigorous quality standards for global compliance.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.098" (2.50mm)
- Number of Positions: 3
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Kinked Pin, Solder
- Fastening Type: Latch Holder
- Contact Length - Mating: -
- Contact Length - Post: 0.126" (3.20mm)
- Overall Contact Length: -
- Insulation Height: 0.356" (9.05mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 59.0µin (1.50µm)
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: Board Guide
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: -
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: 250V
