1053101110
Molex
Molex

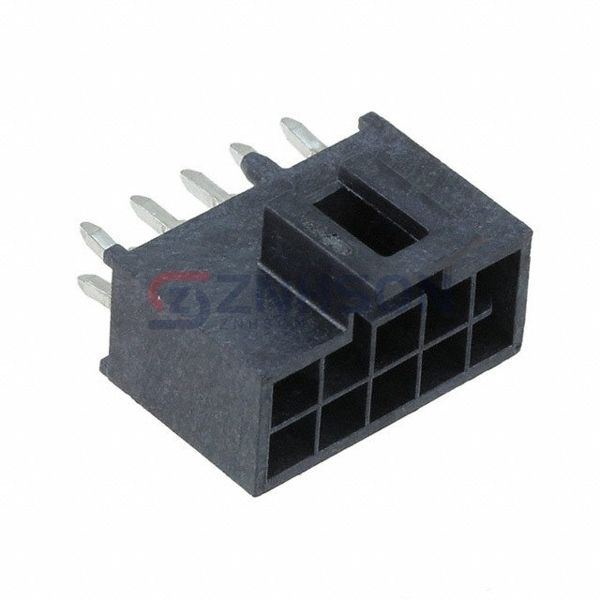

CONN HEADER VERT 10POS 2.5MM
$2.63
Available to order
Reference Price (USD)
1+
$2.07000
10+
$1.87500
120+
$1.60758
600+
$1.33963
1,080+
$1.14825
5,040+
$1.01812
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the 1053101110 rectangular connector header from Molex, a top choice for male pin interconnections. These headers provide exceptional mechanical strength and electrical performance. With options for through-hole or surface mount, the 1053101110 adapts to different assembly processes. Ideal for use in automotive electronics, consumer gadgets, and IoT devices. Molex guarantees connectors that enhance your product's reliability and efficiency.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.098" (2.50mm)
- Number of Positions: 10
- Number of Rows: 2
- Row Spacing - Mating: 0.098" (2.50mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Kinked Pin, Solder
- Fastening Type: Latch Holder
- Contact Length - Mating: -
- Contact Length - Post: 0.126" (3.20mm)
- Overall Contact Length: -
- Insulation Height: 0.356" (9.05mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 59.0µin (1.50µm)
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: Board Guide
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: -
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: 250V
