105311-2103
Molex
Molex
NANOFIT HDR VT SGL FRK 3CKT TIN
$0.78
Available to order
Reference Price (USD)
1+
$0.78000
500+
$0.7722
1000+
$0.7644
1500+
$0.7566
2000+
$0.7488
2500+
$0.741
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 105311-2103 from Molex is a high-quality rectangular connector header designed for reliable interconnections in various electronic applications. These male pin headers feature a robust construction, ensuring secure and stable connections. Ideal for PCB mounting, the 105311-2103 offers excellent electrical performance and durability. With options for different pin counts and pitches, this connector is versatile for numerous industrial and consumer electronics. Applications include automotive systems, telecommunications equipment, and home appliances. Choose Molex for precision-engineered connectors that meet global standards.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.098" (2.50mm)
- Number of Positions: 3
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Latch Holder
- Contact Length - Mating: -
- Contact Length - Post: 0.126" (3.20mm)
- Overall Contact Length: -
- Insulation Height: 0.356" (9.05mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 59.0µin (1.50µm)
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: Board Guide, Board Lock
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: -
- Insulation Color: Natural
- Current Rating (Amps): -
- Voltage Rating: 250V
Related Products
TE Connectivity AMP Connectors
1-87224-1
Samtec Inc.
TSW-104-07-S-D
Samtec Inc.
FTSH-130-04-LM-DH-A
Preci-Dip
350-10-111-01-609101
Samtec Inc.
TSM-133-04-L-DV
Molex
0022287131
Samtec Inc.
FTS-140-03-F-DV
Samtec Inc.

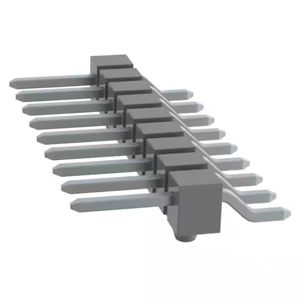

TSM-109-01-T-SH-A
