1053111304
Molex
Molex

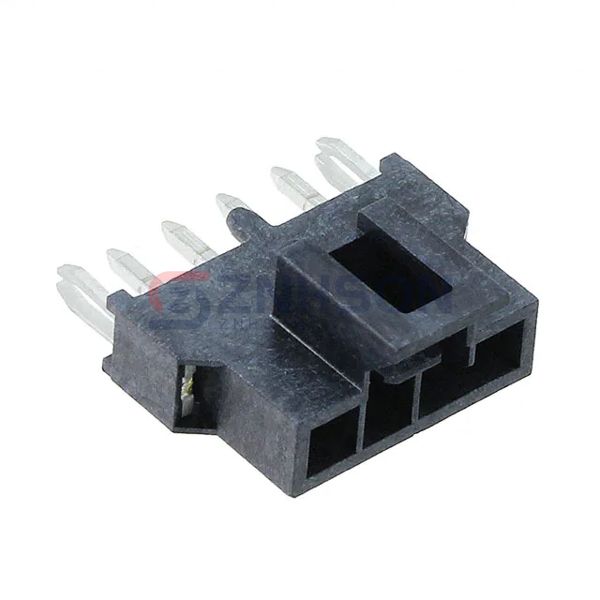

CONN HEADER VERT 4POS 2.5MM
$1.97
Available to order
Reference Price (USD)
1+
$1.54000
10+
$1.40100
126+
$1.20119
504+
$1.00099
1,008+
$0.85800
5,040+
$0.76076
10,080+
$0.74360
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 1053111304 by Molex is a premium rectangular connector header designed for male pin connections. Engineered for precision, these headers offer low insertion loss and high mating cycles. Perfect for high-density PCB applications, the 1053111304 supports various configurations to meet diverse needs. Its applications span across data communication, military equipment, and renewable energy systems. Molex ensures each connector meets rigorous quality standards for global compliance.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.098" (2.50mm)
- Number of Positions: 4
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Latch Holder
- Contact Length - Mating: -
- Contact Length - Post: 0.126" (3.20mm)
- Overall Contact Length: -
- Insulation Height: 0.356" (9.05mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 30.0µin (0.76µm)
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: Board Guide, Board Lock
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: -
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: 250V
