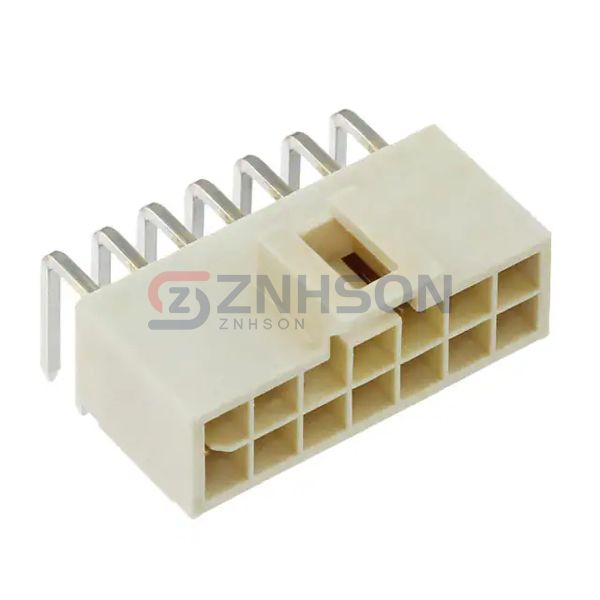

1053142114
Molex
Molex
CONN HEADER R/A 14POS 2.5MM
$2.00
Available to order
Reference Price (USD)
1+
$2.70000
90+
$2.27178
180+
$2.16361
540+
$1.83906
1,080+
$1.56861
5,040+
$1.40634
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your electronic assemblies with the 1053142114 rectangular connector header from Molex. These male pin connectors are built for high-performance applications, offering excellent signal integrity and durability. Suitable for use in automotive, medical, and telecommunications industries, the 1053142114 meets the highest industry standards. Molex provides connectors that ensure long-term reliability and performance.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.098" (2.50mm)
- Number of Positions: 14
- Number of Rows: 2
- Row Spacing - Mating: 0.098" (2.50mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Latch Holder
- Contact Length - Mating: -
- Contact Length - Post: 0.138" (3.50mm)
- Overall Contact Length: -
- Insulation Height: 0.247" (6.28mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 59.0µin (1.50µm)
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: Board Guide
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: -
- Insulation Color: Natural
- Current Rating (Amps): -
- Voltage Rating: 250V
Related Products
Amphenol ICC (FCI)
77315-401-18LF
Samtec Inc.
TSW-128-14-L-S
Molex
0022289180
Harwin Inc.
M80-5132622P
Samtec Inc.
MMT-122-01-F-MT-K
Samtec Inc.
TSW-118-07-L-D
Samtec Inc.
TMM-105-05-L-D
Samtec Inc.
TSM-106-01-F-SH-A-002
Samtec Inc.

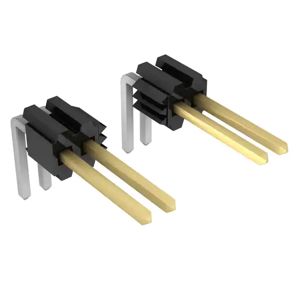

TMS-107-01-L-S-RA
